B4SF23A

B4SF23A; Philips Finland - (ID = 215436) Radio B4SF23A; Philips Finland - (ID = 215471) Radio
B4SF23A; Philips Finland - (ID = 215514) Radio
Use red slider bar for more.
B4SF23A; Philips Finland - (ID = 215436) Radio

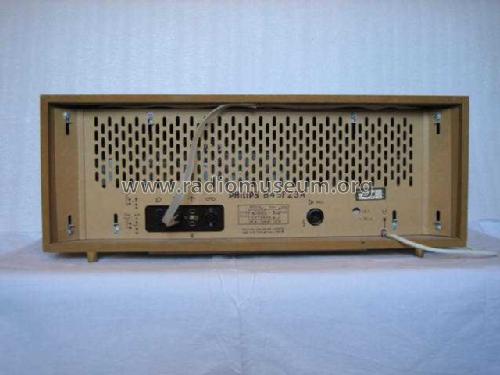

Philips Finland -: B4SF23A [Radio] ID = 215436 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model B4SF23A, Philips Finland - see also Fenno and TeRate:
1/3

Country:  Finland
Manufacturer / Brand:  Philips Finland - see also Fenno and TeRate
Year: 1962 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 EABC80 EM84 ECL82 ECL82 EZ80
schematic requested
Main principle Superheterodyne (common); 3 AF stage(s)
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 220/245 Volt
Loudspeaker 2 Loudspeakers / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: B4SF23A - Philips Finland - see also
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 239 x 242 mm / 24 x 9.4 x 9.5 inch
Notes AF-power section (ironless) Finnish pat.application no 831/59. Speakers 800 ohm.
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Source of data -- Collector info (Sammler)

Model page created by Eero Ukkola. See "Data change" for further contributors.
