B5S91A Ch= G3A

B5S91A Ch= G3A; Philips, Svenska AB, (ID = 813234) Radio B5S91A Ch= G3A; Philips, Svenska AB, (ID = 813233) Radio
B5S91A Ch= G3A; Philips, Svenska AB, (ID = 813235) Radio B5S91A Ch= G3A; Philips, Svenska AB, (ID = 813236) Radio
Use red slider bar for more.

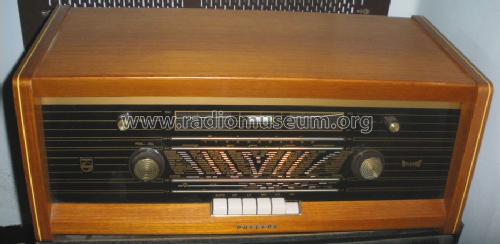

B5S91A Ch= G3A; Philips, Svenska AB, (ID = 813234) Radio
Philips, Svenska AB,: B5S91A Ch= G3A [Radio] ID = 813234 933x457
Select picture or schematic to display from thumbnails on the right and click for download.
For model B5S91A Ch= G3A, Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1959/1960 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EBF89 ECC83 EM84 ECL82 ECL82 ECL82 ECL82
Main principle Super-Heterodyne (Super in general); ZF/IF 468/10850 kHz
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 100; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers / Ø 7.5 inch = 19.1 cm
Power out
from Radiomuseum.org Model: B5S91A Ch= G3A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 610 x 250 x 290 mm / 24 x 9.8 x 11.4 inch
Collectors' prices
Mentioned in -- Original-techn. papers.

Model page created by a member from FIN. See "Data change" for further contributors.



All listed radios etc. from Philips, Svenska AB, Stockholm
Here you find 189 models, 175 with images and 67 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
