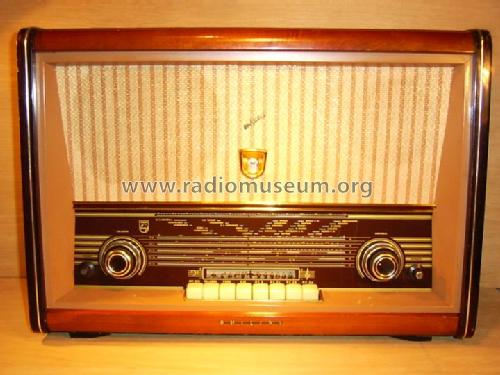

B6E72A; Philips Ibérica, (ID = 348186) Radio
Philips Ibérica,: B6E72A [Radio] ID = 348186 720x540
Select picture or schematic to display from thumbnails on the right and click for download.
For model B6E72A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: ECH81 EBF80 EBC90 HL94 EM80 HL94 EZ80
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B6E72A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 600 x 418 x 246 mm / 23.6 x 16.5 x 9.7 inch
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.



All listed radios etc. from Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Here you find 529 models, 475 with images and 429 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Ibérica,: B6E72A
Threads: 1 | Posts: 2
Hits: 2229     Replies: 1
philips: B6E72A (B6E 72A);
José M. Massagué Ferrer
31.Jul.07
  1

Material : madera

Peso (masa) 10,5 Kg

Júlio Branco
31.Jul.07
  2

Amigo José,

Se tens um radio Philips deste modelo e sabes que é um radio com a caixa, (cabinete), em madeira, então vai à página deste modelo e em baixo há um lihk, Añadir información al modelo/foro, e propôe tu ao Rmorg esta alteração ao modelo, assim como outras informações que achares de relevo, para uma melhor informação técnica deste radio.

Com os meus cordias cumprimentos,

Júlio Branco de Lisboa
