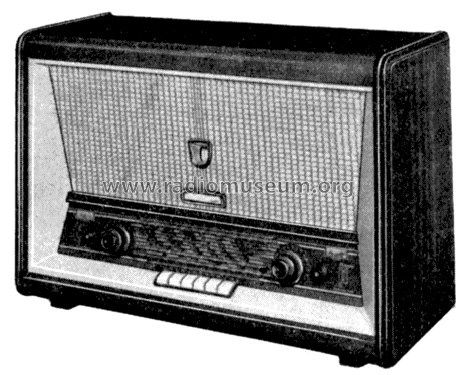

B6F87A; Philips France; (ID = 2017504) Radio
Philips France;: B6F87A [Radio] ID = 2017504 921x747
Select picture or schematic to display from thumbnails on the right and click for download.
For model B6F87A, Philips France; Paris:
Aus dem Servicemanual

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1958 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: ECC85 ECH81 EBF89 ECC83 EM81 EL86 EL86 EZ81
Semiconductors (the count is only for transistors) OA79 OA79
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10500 kHz; 2 AF stage(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker 2 Loudspeakers
Power out 3.3 W (unknown quality)
from Radiomuseum.org Model: B6F87A - Philips France; Paris
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 615 x 420 x 257 mm / 24.2 x 16.5 x 10.1 inch
Notes

5 gammes d'ondes: GO de 1100 à 1950 m, PO de 185 à 572 m, OC de 19 à 51 m, FM de 87.5 à 100.5 MHz, et une gamme chalutiers de 80 a 180 m. Antenne ferrite de 2 x 14 cm intégré et orientable. Clavier 6 touches éclairées, dont deux stations préréglées (une au choix par touche GO préréglée, Europe 1 par les deux touches GO).

Sortie haute impédance 800 ohms sans transformateur, deux HP : type 21F264-17AV de 21 cm et bicône type 16120/13AMV de 16 cm. Prises pick-up et HP supplémentaire.

Coffret bois teine noyer, cadre décoratif en polystyrène.

Adaptateur chalutier FD 002 79 intégré.

Équivalent au Radiola RA678A.

Net weight (2.2 lb = 1 kg) 13.1 kg / 28 lb 13.7 oz (28.855 lb)
Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.
