B7X44A /01 /03

Philips; Eindhoven (tubes international!); Miniwatt

Data
Forum
Pictures
Collections

  • Year
  • 1964–1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29780

Click on the schematic thumbnail to request the schematic as a free document.

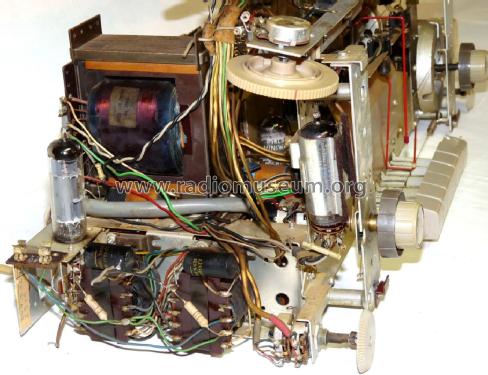

 Technical Specifications

  • Number of Tubes
  • 10
  • Number of Transistors
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452/10700 kHz; 3 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)     14 FM circuit(s)
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
  • Loudspeaker
  • 2 Loudspeakers / Ø 18 cm = 7.1 inch
  • Power out
  • 6 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: B7X44A /01 /03 - Philips; Eindhoven tubes
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 764 x 268 x 246 mm / 30.1 x 10.6 x 9.7 inch
  • Notes
  • 2 cabinet versions: /01 = light ; /03 = dark.

    AM radio with built-in ferroceptor:
    • LW: 150 - 400 kHz.
    • BC: 517 - 1620 kHz.
    • SW1: 1,65 - 5,2 MHz.
    • SW2: 5,9 - 18,2 MHz.
    FM stereo radio with dipole antenna input: 87,5 - 108 MHz (module 4822 107 00513).

    Amplifier: 2 x 3 W in 5 Ohm (loudspeakers AD3800M).
    Light bulbs: 3x (6.3V / 250mA) + 2x (6V/50mA).
    Diodes: 7x AA119, 3x OA200, 1x BA102, 2x OA79, 1x OA85.

    This radio has:
    Baxandall type tone controls (bass, treble).
    Balance control (left/right).
    Mono/stereo switch.
    Reverberation.
    Stereo expander (wider stereo sound image).
    AFC on the FM band.
    Rapido-sound (fast startup from standby mode).

  • Net weight (2.2 lb = 1 kg)
  • 13.8 kg / 30 lb 6.3 oz (30.396 lb)
  • Price in first year of sale
  • 754.00 F
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  Solid state ombouw van een Philips buizen FM-tuner, ingebouwd in de bestaande behuizing. 646 KB
  • Documents regarding this model
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

 Forum

Forum contributions about this model: Philips; Eindhoven: B7X44A /01 /03

Threads: 1 | Posts: 6

Hallo!

Hat jemand eine deutsche oder englische Bedienungsanleitung (Kopie) zu diesem Gerät?
Finde leider nur Schaltpläne bzw. eine niederländische Kurzbeschreibung, mit der ich nicht so viel anfangen kann.

Danke für eine kurze Info!

Weihnachtliche Grüße aus Wien,
Rafael Kubisz

Rafael Kubisz, 20.Dec.05

Weitere Posts (6) zu diesem Thema.
