B7X44A /03

B7X44A /03; Philips Belgium (ID = 144337) Radio B7X44A /03; Philips Belgium (ID = 144341) Radio
B7X44A /03; Philips Belgium (ID = 355357) Radio B7X44A /03; Philips Belgium (ID = 355358) Radio
B7X44A /03; Philips Belgium (ID = 355359) Radio B7X44A /03; Philips Belgium (ID = 355360) Radio
B7X44A /03; Philips Belgium (ID = 567772) Radio B7X44A /03; Philips Belgium (ID = 567773) Radio
B7X44A /03; Philips Belgium (ID = 567774) Radio B7X44A /03; Philips Belgium (ID = 567776) Radio
Use red slider bar for more.

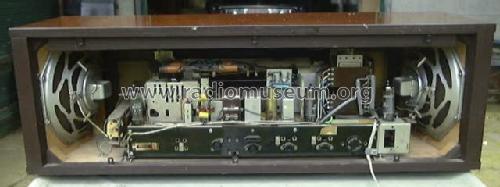

B7X44A /03; Philips Belgium (ID = 144337) Radio
Philips Belgium: B7X44A /03 [Radio] ID = 144337 640x240
Select picture or schematic to display from thumbnails on the right and click for download.
For model B7X44A /03, Philips Belgium (Belgien):
aus ebay, mit Erlaubnis des Verkäufers em85

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 10: ECC85 ECH81 EF89 EF183 EM87 ECC83 ECC83 ECL86 ECL86 EZ81
Semiconductors (the count is only for transistors) 6: AF126 AF126 AF126 AC125 AC125 AC127
Main principle Superheterodyne (common); ZF/IF 452/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     14 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: B7X44A /03 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 764 x 268 x 246 mm / 30.1 x 10.6 x 9.7 inch
Net weight (2.2 lb = 1 kg) 13.8 kg / 30 lb 6.3 oz (30.396 lb)
Mentioned in -- Original-techn. papers.

Model page created by Gidi Verheijen. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 475 models, 452 with images and 278 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
