For model B8X44A /00, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1964/1965 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 9: ECC85 ECH81 EF89 EF183 EM84 ECC83 ECL86 ECL86 EZ81
Semiconductors (the count is only for transistors) 7: AF126 AF126 AF126 AC125 AC125 AC127 AC172

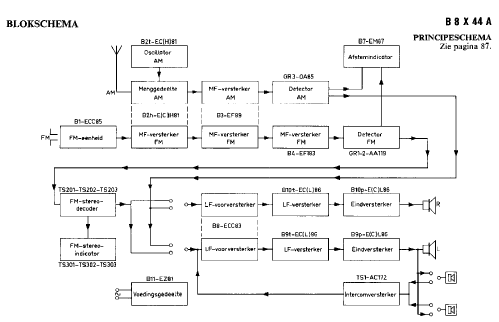

Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 145; 165; 220; 245 Volt
Loudspeaker 2 Loudspeakers / Ø 18 cm = 7.1 inch
Power out 4 W (unknown quality)

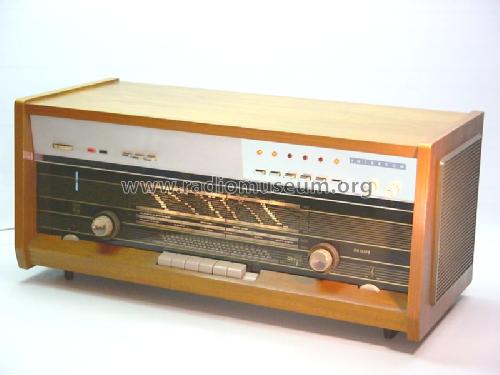

from Radiomuseum.org Model: B8X44A /00 - Philips Belgium Belgien
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 636 x 277 x 272 mm / 25 x 10.9 x 10.7 inch
Notes
AM radio with built-in ferroceptor:
  • LW: 150 - 400 kHz.
  • BC: 517 - 1622 kHz.
  • SW1: 1,65 - 5,2 MHz.
  • SW2: 5,9 - 18,2 MHz.
FM stereo radio with dipole antenna input: 87,5 - 108 MHz (module 4822 107 00513).

Amplifier: 2 x 2 W in 5 Ohm (loudspeakers AD3800M).

Light bulbs: 3x (6.3V / 320mA) + 8x (6V/50mA).
Diodes: 9x AA119, 3x OA200, 1x BA102, 1x OA85, 1x OAZ206.

This radio has:
Baxandall type tone controls (bass, treble).
Balance control (left/right).
Mono/stereo switch.
Stereo expander (wider stereo sound image).
AFC on the FM band.
Rapido-sound (fast startup from standby mode).

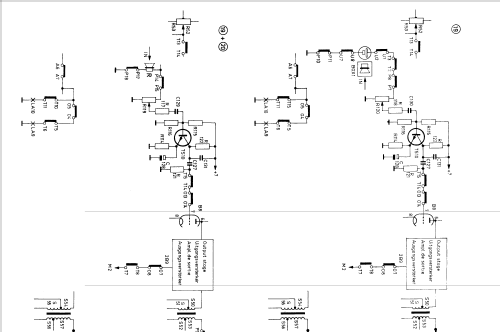

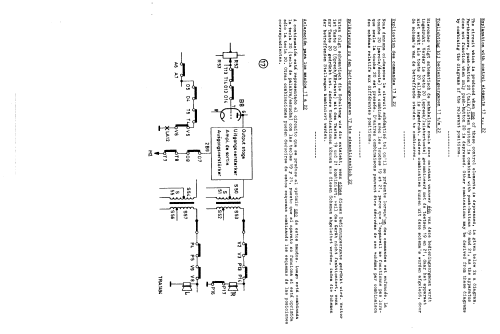

Intercom facilities between the radio and external loudspeaker #1 or #2 in other rooms where the loudspeakers act as a microphone. Each of the 2 external loudspeakers have individual volume control for intercom independant of the radio volume control. Recommended external loudspeaker boxes: AD5057.

Net weight (2.2 lb = 1 kg) 11.6 kg / 25 lb 8.8 oz (25.551 lb)
Collectors' prices

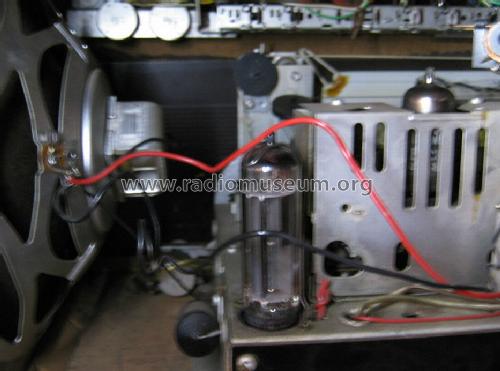

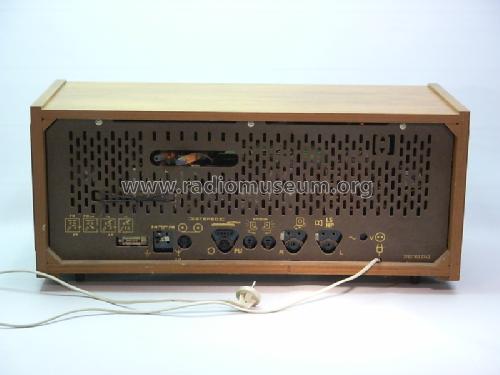

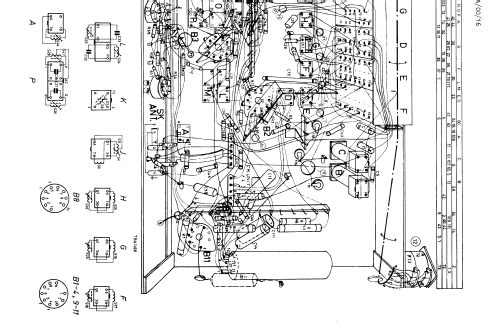

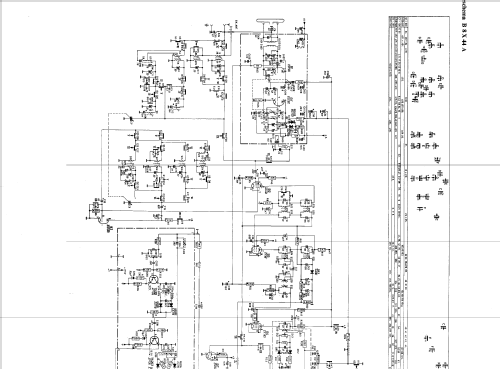

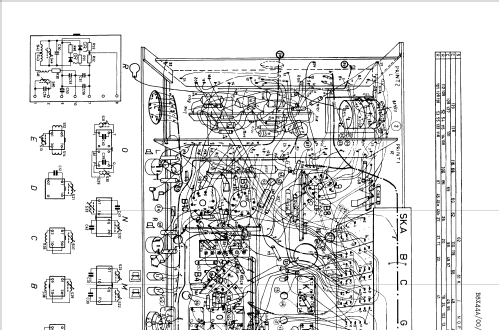

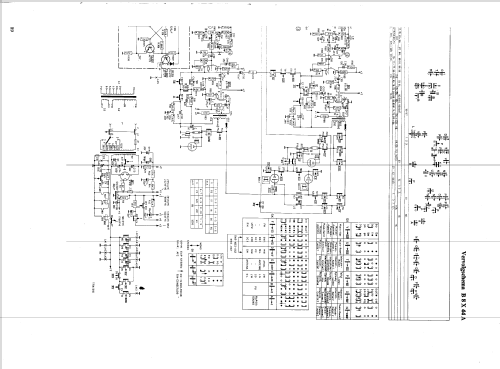

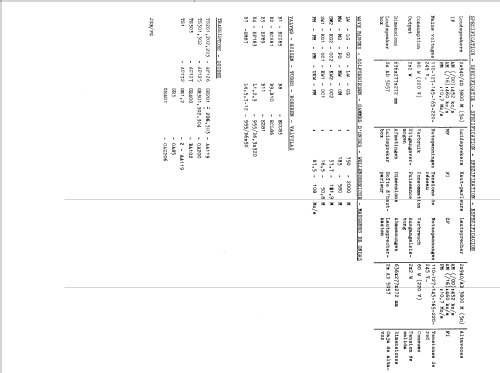

Literature/Schematics (1) -- Original-techn. papers.
Documents about this model
  Solid state ombouw van een Philips buizen FM-tuner, ingebouwd in de bestaande behuizing. 646 KB
