BCA355U

Philips; India

  • Year
  • 1956
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 283953

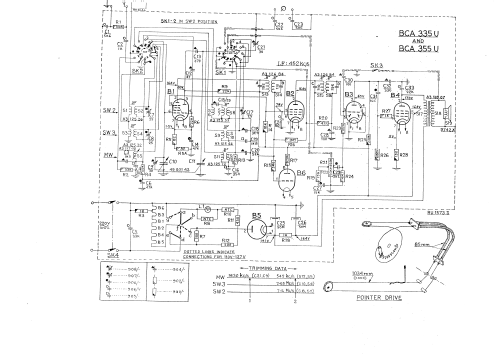

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • AC/DC-set / 110-127; 200-220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

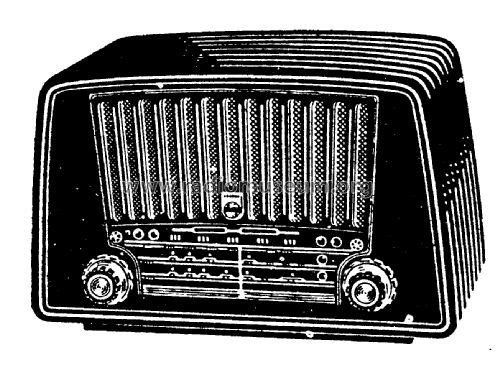

  • Model: BCA355U - Philips; India
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Notes
  • Speaker type: AD3500X or 9742X (Z = 5 ohms).

    Wave bands:
    MW:  185 - 580 m
    SW2: 13.7 - 41.7 m
    SW3: 40.6 - 120 m

    For operation on 220 V mains, a resistor on the chassis can be short circuited.

  • Mentioned in
  • -- Original-techn. papers. (Philips Circuits, Volume 3, 1971-73)
  • Author
  • Model page created by Robert Kooijman. See "Data change" for further contributors.
