BCH310A

BCH310A; Philips - Schweiz (ID = 243758) Radio

BCH310A; Philips - Schweiz (ID = 243759) Radio

BCH310A; Philips - Schweiz (ID = 2595502) Radio

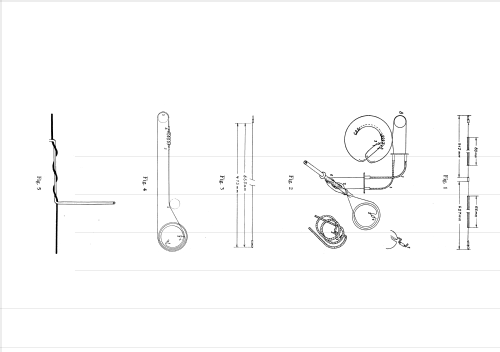

BCH310A; Philips - Schweiz (ID = 2595503) Radio

BCH310A; Philips - Schweiz (ID = 2595504) Radio
BCH310A; Philips - Schweiz (ID = 729883) Radio BCH310A; Philips - Schweiz (ID = 729886) Radio

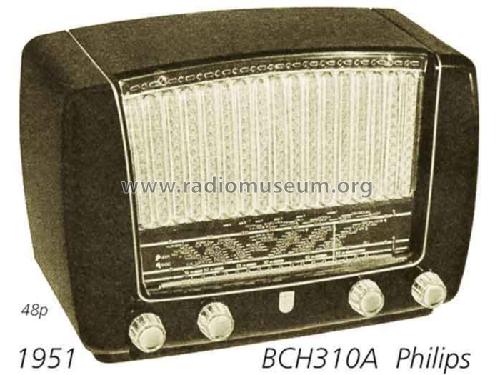

BCH310A; Philips - Schweiz (ID = 729885) Radio BCH310A; Philips - Schweiz (ID = 2238) Radio
BCH310A; Philips - Schweiz (ID = 729884) Radio BCH310A; Philips - Schweiz (ID = 729887) Radio

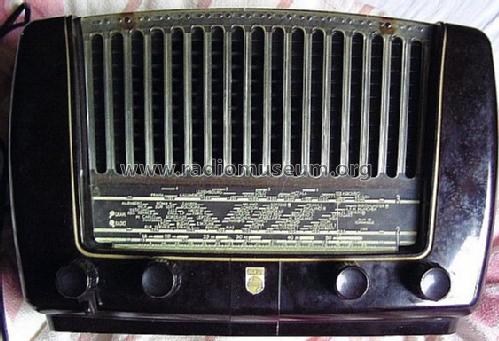

BCH310A; Philips - Schweiz (ID = 754530) Radio BCH310A; Philips - Schweiz (ID = 754680) Radio
BCH310A; Philips - Schweiz (ID = 754681) Radio
Use red slider bar for more.
BCH310A; Philips - Schweiz (ID = 729883) Radio
Philips - Schweiz: BCH310A [Radio] ID = 729883 933x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model BCH310A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1951–1953 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: BCH310A - Philips - Schweiz
Material Bakelite case
Dimensions (WHD) 380 x 255 x 175 mm / 15 x 10 x 6.9 inch
Notes ZF kann abweichen; siehe auch Jura .Thermosicherung.
Net weight (2.2 lb = 1 kg) 7.4 kg / 16 lb 4.8 oz (16.3 lb)
Price in first year of sale 348.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.


All listed radios etc. from Philips - Schweiz
Here you find 288 models, 209 with images and 212 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
