BCH381A

BCH381A; Philips - Schweiz (ID = 2248560) Radio

BCH381A; Philips - Schweiz (ID = 2248561) Radio

BCH381A; Philips - Schweiz (ID = 2248562) Radio

BCH381A; Philips - Schweiz (ID = 2248563) Radio

BCH381A; Philips - Schweiz (ID = 2248564) Radio

BCH381A; Philips - Schweiz (ID = 2248565) Radio

BCH381A; Philips - Schweiz (ID = 2248566) Radio
BCH381A; Philips - Schweiz (ID = 2248526) Radio
Use red slider bar for more.
BCH381A; Philips - Schweiz (ID = 2248526) Radio
Philips - Schweiz: BCH381A [Radio] ID = 2248526 1044x401
Select picture or schematic to display from thumbnails on the right and click for download.
For model BCH381A, Philips - Schweiz:

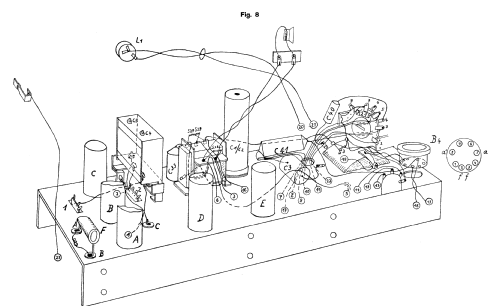

Radio-Bild aus dem Service Manual Philips BCH381A (Manon)

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH21 ECH21 EBL21 AZ1
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 125; 145; 220 or 145-220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BCH381A - Philips - Schweiz
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 440 x 250 x 190 mm / 17.3 x 9.8 x 7.5 inch
Notes

Derived from BX380A with the following differences:

  • uses a knob instead of a lever for tone control
  • C2/C2 and C3 are a different type
  • decorative lines on the dial scale
  • voltage switch and transformers are different
  • non-standard code number for the output transformer

Part of the production is designed for 125, 145 and 220 Volt AC mains. Some have a 145-220 and 245 voltage setting.



Net weight (2.2 lb = 1 kg) 6 kg / 13 lb 3.5 oz (13.216 lb)
Price in first year of sale 195.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Mentioned in -- Original-techn. papers.

Model page created by John Koster. See "Data change" for further contributors.
