For model BCH409A, Philips - Schweiz:
CH_Philips_BCH 409 A_vue côté gauche_coll. William FAGUE

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1951 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: BCH409A - Philips - Schweiz
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 310 x 200 mm / 18.1 x 12.2 x 7.9 inch
Notes

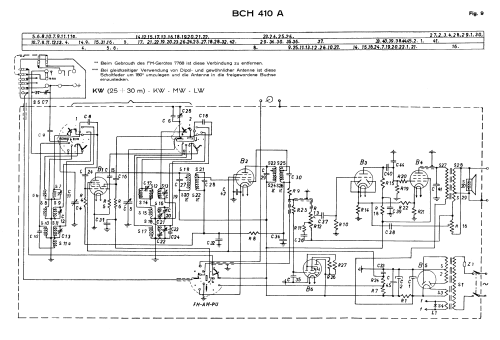

Modello uguale al BCH410 ma senza occhio magico.

Model page created by Franco Todeschini. See "Data change" for further contributors.
