For model BCH410A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4 W (unknown quality)
from Radiomuseum.org Model: BCH410A - Philips - Schweiz
Material Bakelite case
Notes ZF kann abweichen; außen mit Holzoptik.
Price in first year of sale 452.00 SFr
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb

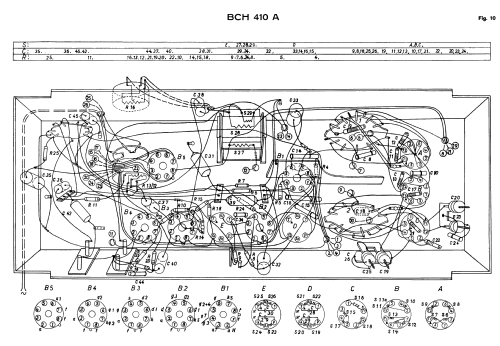

Circuit diagram reference Die Tungsram-Tabellen führen das Modell auf.
