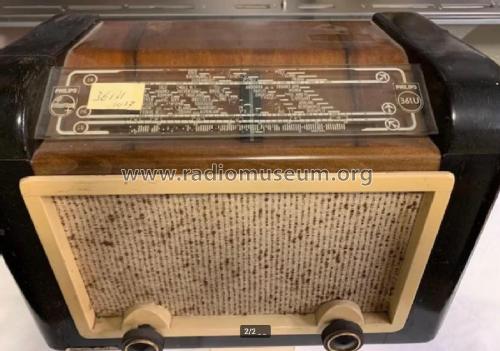

BDK361U

BDK361U; Philips Radio A/S; K (ID = 287828) Radio

BDK361U; Philips Radio A/S; K (ID = 289350) Radio

BDK361U; Philips Radio A/S; K (ID = 289349) Radio

BDK361U; Philips Radio A/S; K (ID = 289351) Radio

BDK361U; Philips Radio A/S; K (ID = 289352) Radio

BDK361U; Philips Radio A/S; K (ID = 289525) Radio

BDK361U; Philips Radio A/S; K (ID = 289526) Radio

BDK361U; Philips Radio A/S; K (ID = 289527) Radio

BDK361U; Philips Radio A/S; K (ID = 289528) Radio
BDK361U; Philips Radio A/S; K (ID = 620164) Radio BDK361U; Philips Radio A/S; K (ID = 620165) Radio
BDK361U; Philips Radio A/S; K (ID = 620166) Radio BDK361U; Philips Radio A/S; K (ID = 620163) Radio
Use red slider bar for more.

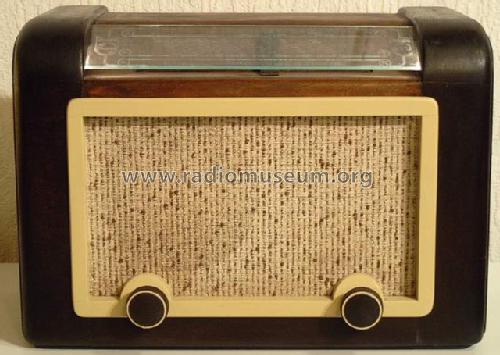

BDK361U; Philips Radio A/S; K (ID = 620164) Radio
Philips Radio A/S; K: BDK361U [Radio] ID = 620164 640x455
Select picture or schematic to display from thumbnails on the right and click for download.
For model BDK361U, Philips Radio A/S; København

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH4 UCH4 UBL1 UY1N
Main principle Superheterodyne (common); ZF/IF 441 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker -Loudspeaker incorporated, but system not known.
Power out
from Radiomuseum.org Model: BDK361U - Philips Radio A/S; København
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 395 x 278 x 200 mm / 15.6 x 10.9 x 7.9 inch
Notes

BDK ... is a typical model for Philips Denmark - even if the schematic would come from the Netherlands. BDK361U is a typical Philips Denmark.

Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Mentioned in -- Original-techn. papers.

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Philips Radio A/S; København
Here you find 101 models, 98 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
