BDK-212U

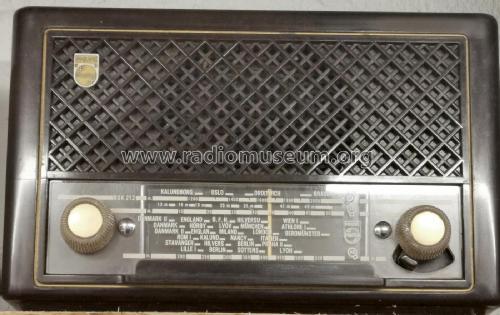

BDK-212U; Philips Radio A/S; K (ID = 587552) Radio BDK-212U; Philips Radio A/S; K (ID = 587553) Radio

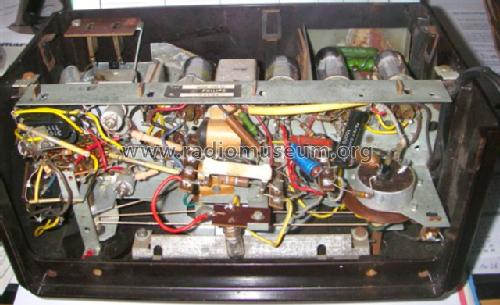

BDK-212U; Philips Radio A/S; K (ID = 587554) Radio BDK-212U; Philips Radio A/S; K (ID = 587555) Radio
BDK-212U; Philips Radio A/S; K (ID = 587556) Radio
Use red slider bar for more.
BDK-212U; Philips Radio A/S; K (ID = 587552) Radio
Philips Radio A/S; K: BDK-212U [Radio] ID = 587552 640x416
Select picture or schematic to display from thumbnails on the right and click for download.
For model BDK-212U, Philips Radio A/S; København

Country:  Denmark
Manufacturer / Brand:  Philips Radio A/S; København
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: BDK-212U - Philips Radio A/S; København
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 270 x 170 x 145 mm / 10.6 x 6.7 x 5.7 inch
Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)
Source of data - - Data from my own collection

Model page created by Aglef Tröger. See "Data change" for further contributors.



All listed radios etc. from Philips Radio A/S; København
Here you find 101 models, 98 with images and 54 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Radio A/S; K: BDK-212U
Threads: 1 | Posts: 1
Hits: 1414     Replies: 0
philips: BDK-212U; Mullart MAS1002 baugleiche Gehäuse
Aglef Tröger
11.Nov.09
  1

Das Gehäuse der BDK-212U (DK) ist baugleich mit dem Mullard MAS1002 (Australia). Lediglich die Skala ist wegen der unterschiedlichen Wellenbereiche unterschiedlich.


Philips Radio A/S; K: BDK-212U
