BE-231-U

BE-231-U; Philips Ibérica, (ID = 202126) Radio

BE-231-U; Philips Ibérica, (ID = 2412386) Radio
BE-231-U; Philips Ibérica, (ID = 2379859) Radio BE-231-U; Philips Ibérica, (ID = 2379860) Radio
BE-231-U; Philips Ibérica, (ID = 2379861) Radio BE-231-U; Philips Ibérica, (ID = 114465) Radio

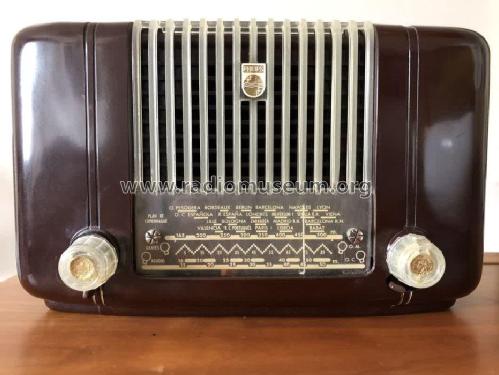

BE-231-U; Philips Ibérica, (ID = 2500178) Radio BE-231-U; Philips Ibérica, (ID = 2500179) Radio
Use red slider bar for more.
BE-231-U; Philips Ibérica, (ID = 2379859) Radio
Philips Ibérica,: BE-231-U [Radio] ID = 2379859 554x374

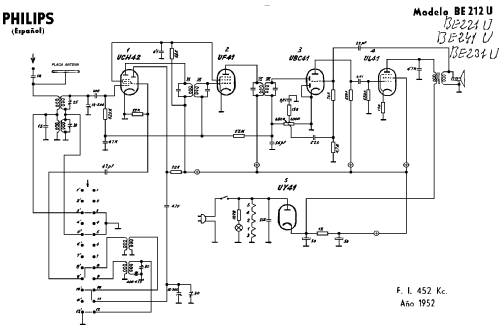

Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-231-U, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona:
Bild aus todocoleccion-140929958

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 470 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110/130 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BE-231-U - Philips Ibérica, COPRESA,
Material Bakelite case
Dimensions (WHD) 300 x 180 x 160 mm / 11.8 x 7.1 x 6.3 inch
Price in first year of sale 1'800.00 ESP
External source of data Ernst Erb
Source of data Radio Historia y Técnica, J.J.E.
Literature/Schematics (1) Ânuncio La Vanguardia Española 31 Octubre 1953
