BE-241-U

BE-241-U; Philips Ibérica, (ID = 202120) Radio

BE-241-U; Philips Ibérica, (ID = 202122) Radio

BE-241-U; Philips Ibérica, (ID = 223441) Radio

BE-241-U; Philips Ibérica, (ID = 223442) Radio

BE-241-U; Philips Ibérica, (ID = 202121) Radio
BE-241-U; Philips Ibérica, (ID = 1605627) Radio BE-241-U; Philips Ibérica, (ID = 114516) Radio

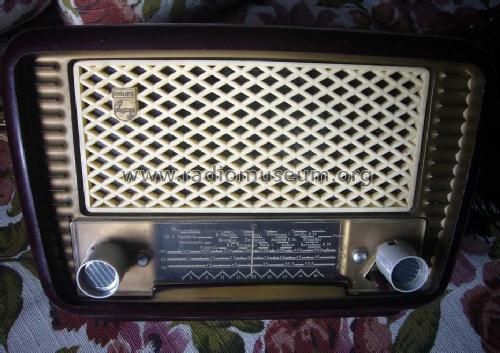

BE-241-U; Philips Ibérica, (ID = 1422054) Radio BE-241-U; Philips Ibérica, (ID = 1423636) Radio
BE-241-U; Philips Ibérica, (ID = 1531983) Radio BE-241-U; Philips Ibérica, (ID = 1531984) Radio
BE-241-U; Philips Ibérica, (ID = 1531985) Radio BE-241-U; Philips Ibérica, (ID = 1531988) Radio
BE-241-U; Philips Ibérica, (ID = 1531989) Radio BE-241-U; Philips Ibérica, (ID = 1605628) Radio
Use red slider bar for more.

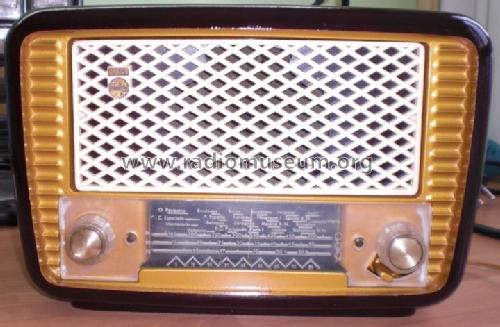

BE-241-U; Philips Ibérica, (ID = 1605627) Radio
Philips Ibérica,: BE-241-U [Radio] ID = 1605627 720x472
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-241-U, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1954/1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UY41 UL41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 5 W (unknown quality)
from Radiomuseum.org Model: BE-241-U - Philips Ibérica, COPRESA,
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 290 x 190 x 140 mm / 11.4 x 7.5 x 5.5 inch
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 1'799.80 ESP
External source of data Ernst Erb
Source of data Radio Historia y Técnica, J.J.E.
Literature/Schematics (1) -- Original-techn. papers.
