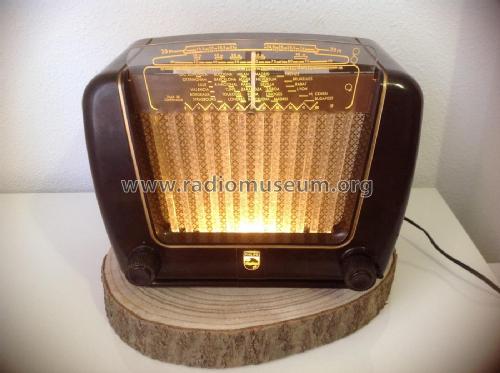

Philetta Peineta BE-292-U

• Country
• Spain

• Manufacturer / Brand
• Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

• Year
• 1949/1950

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 62527

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

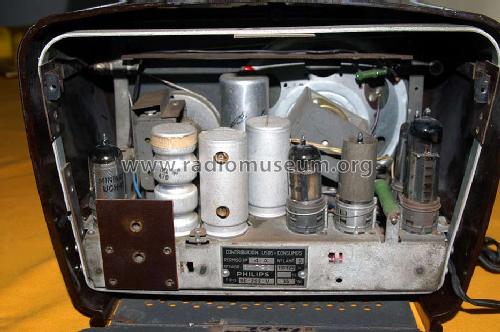

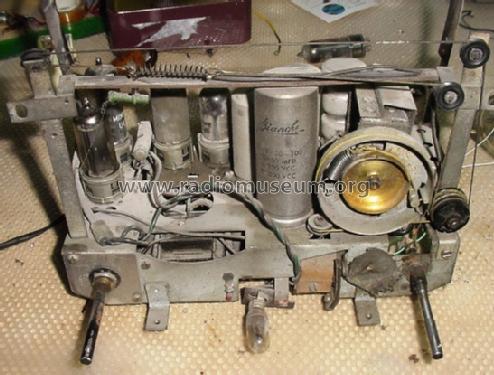

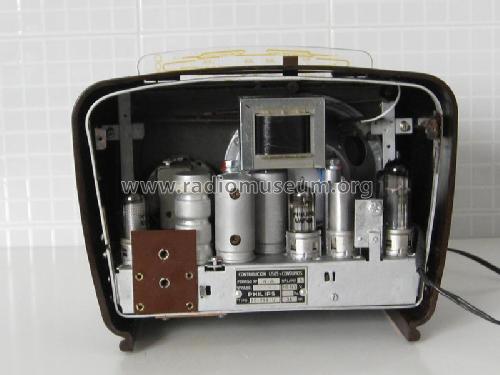

• Number of Tubes
• 5

• Valves / Tubes

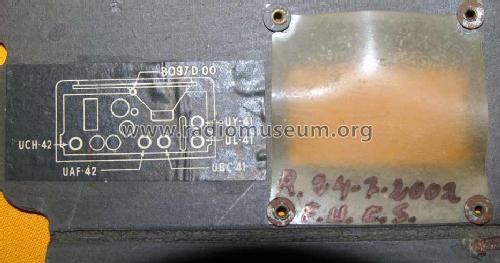

• UCH42 UAF42 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

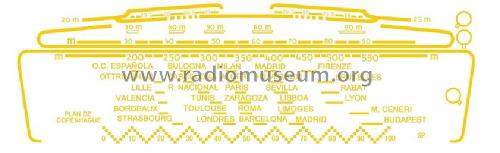

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 110-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch

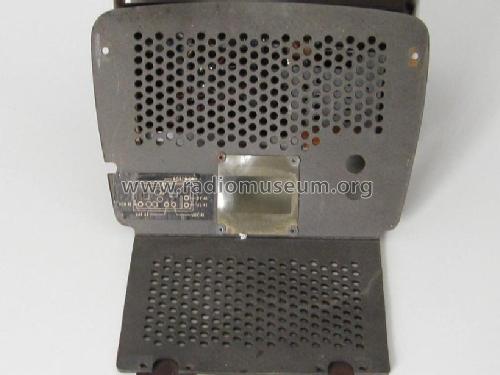

• Material

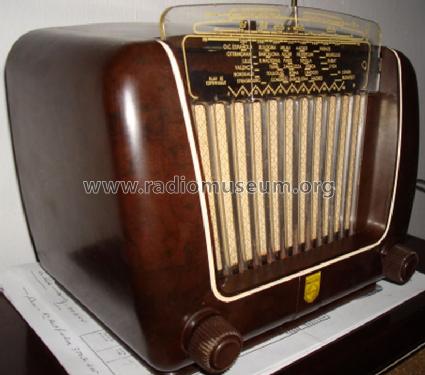

• Bakelite case

• from Radiomuseum.org
• Model: Philetta Peineta BE-292-U - Philips Ibérica, COPRESA,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 260 x 190 x 180 mm / 10.2 x 7.5 x 7.1 inch

• Notes

• OC/SW: 20 - 25 m & 25 - 100 m.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Price in first year of sale
• 1,799.80 ESP

• External source of data
• Ernst Erb

• Source of data
• Radio Historia y Técnica, J.J.E.

• Literature/Schematics (1)
• -- Original-techn. papers.
