BE-312-U

BE-312-U; Philips Ibérica, (ID = 225638) Radio

BE-312-U; Philips Ibérica, (ID = 225639) Radio
BE-312-U; Philips Ibérica, (ID = 1306538) Radio BE-312-U; Philips Ibérica, (ID = 1661481) Radio
BE-312-U; Philips Ibérica, (ID = 1306540) Radio BE-312-U; Philips Ibérica, (ID = 114507) Radio
BE-312-U; Philips Ibérica, (ID = 1306539) Radio BE-312-U; Philips Ibérica, (ID = 1614983) Radio
BE-312-U; Philips Ibérica, (ID = 1614984) Radio BE-312-U; Philips Ibérica, (ID = 1614985) Radio
BE-312-U; Philips Ibérica, (ID = 1614986) Radio BE-312-U; Philips Ibérica, (ID = 1614987) Radio
Use red slider bar for more.
BE-312-U; Philips Ibérica, (ID = 1306538) Radio
Philips Ibérica,: BE-312-U [Radio] ID = 1306538 933x794
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-312-U, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1950 Category: Broadcast Receiver - or past WW2 Tuner

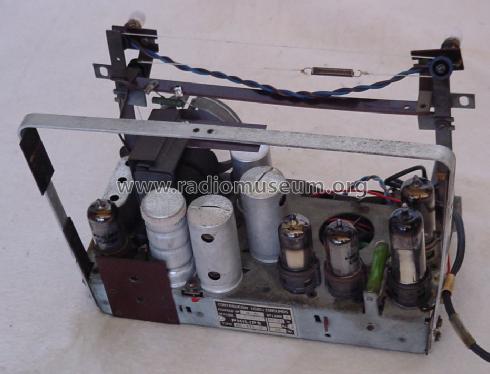

Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: BE-312-U - Philips Ibérica, COPRESA,
Material Bakelite case

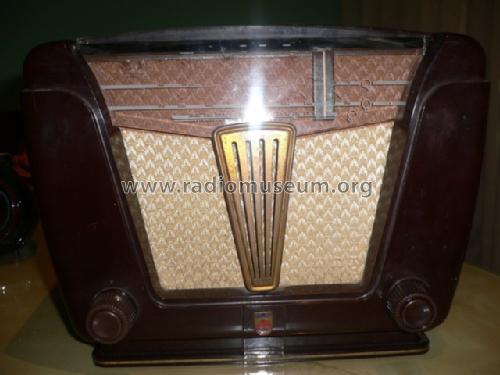

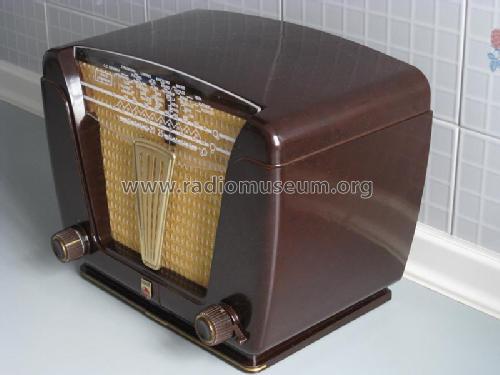

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 270 x 200 x 170 mm / 10.6 x 7.9 x 6.7 inch
Price in first year of sale 1'973.45 ESP
External source of data Ernst Erb
Source of data Radio Historia y Técnica, J.J.E.
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Here you find 538 models, 474 with images and 439 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
