BE-352-U

BE-352-U; Philips Ibérica, (ID = 225651) Radio

BE-352-U; Philips Ibérica, (ID = 225652) Radio

BE-352-U; Philips Ibérica, (ID = 225653) Radio

BE-352-U; Philips Ibérica, (ID = 225654) Radio
BE-352-U; Philips Ibérica, (ID = 244428) Radio BE-352-U; Philips Ibérica, (ID = 244429) Radio
BE-352-U; Philips Ibérica, (ID = 244430) Radio BE-352-U; Philips Ibérica, (ID = 320691) Radio
BE-352-U; Philips Ibérica, (ID = 519038) Radio BE-352-U; Philips Ibérica, (ID = 1208378) Radio
BE-352-U; Philips Ibérica, (ID = 1208379) Radio BE-352-U; Philips Ibérica, (ID = 1676286) Radio
BE-352-U; Philips Ibérica, (ID = 1676287) Radio BE-352-U; Philips Ibérica, (ID = 1676288) Radio
Use red slider bar for more.
BE-352-U; Philips Ibérica, (ID = 244428) Radio
Philips Ibérica,: BE-352-U [Radio] ID = 244428 933x621
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-352-U, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona:

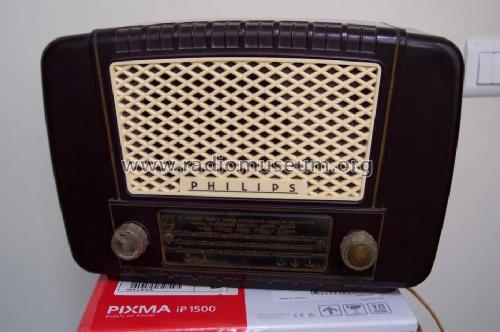

Vista delantera

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1955/1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 110-125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: BE-352-U - Philips Ibérica, COPRESA,
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 330 x 220 x 150 mm / 13 x 8.7 x 5.9 inch
Net weight (2.2 lb = 1 kg) 4 kg / 8 lb 13 oz (8.811 lb)
Price in first year of sale 1'947.00 ESP
Literature/Schematics (1) -- Original-techn. papers. (Anuncio ABC 27-12-1955)

Model page created by Juan Antonio Pardo-Alonso. See "Data change" for further contributors.
