BE-452-A

BE-452-A; Philips Ibérica, (ID = 231533) Radio

BE-452-A; Philips Ibérica, (ID = 231535) Radio

BE-452-A; Philips Ibérica, (ID = 231536) Radio

BE-452-A; Philips Ibérica, (ID = 231534) Radio

BE-452-A; Philips Ibérica, (ID = 2406697) Radio
BE-452-A; Philips Ibérica, (ID = 1648416) Radio BE-452-A; Philips Ibérica, (ID = 231532) Radio
BE-452-A; Philips Ibérica, (ID = 422198) Radio BE-452-A; Philips Ibérica, (ID = 422195) Radio
BE-452-A; Philips Ibérica, (ID = 422193) Radio BE-452-A; Philips Ibérica, (ID = 422194) Radio
BE-452-A; Philips Ibérica, (ID = 422196) Radio BE-452-A; Philips Ibérica, (ID = 422197) Radio
BE-452-A; Philips Ibérica, (ID = 1042054) Radio BE-452-A; Philips Ibérica, (ID = 1042055) Radio
Use red slider bar for more.

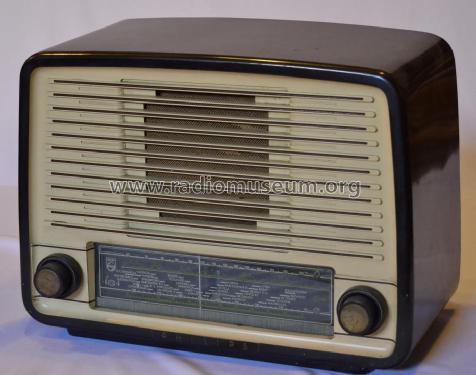

BE-452-A; Philips Ibérica, (ID = 1648416) Radio
Philips Ibérica,: BE-452-A [Radio] ID = 1648416 933x735
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-452-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1955 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH81 EBF80 EBC41 EL84 DM71 EZ80
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm
Power out
from Radiomuseum.org Model: BE-452-A - Philips Ibérica, COPRESA,
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 370 x 270 x 180 mm / 14.6 x 10.6 x 7.1 inch
Price in first year of sale 2'526.00 ESP
Literature/Schematics (1) -- Original-techn. papers. (Anuncio ABC 27-12-1955)

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
