BE-462-A

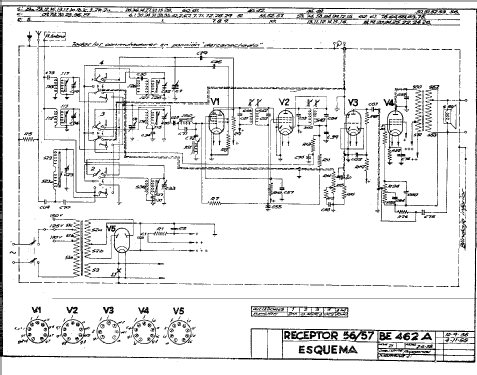

BE-462-A; Philips Ibérica, (ID = 234311) Radio

BE-462-A; Philips Ibérica, (ID = 234314) Radio

BE-462-A; Philips Ibérica, (ID = 234316) Radio

BE-462-A; Philips Ibérica, (ID = 234312) Radio
BE-462-A; Philips Ibérica, (ID = 1025274) Radio BE-462-A; Philips Ibérica, (ID = 214550) Radio
BE-462-A; Philips Ibérica, (ID = 358610) Radio BE-462-A; Philips Ibérica, (ID = 1025275) Radio
BE-462-A; Philips Ibérica, (ID = 1025277) Radio BE-462-A; Philips Ibérica, (ID = 1997252) Radio
Use red slider bar for more.
BE-462-A; Philips Ibérica, (ID = 1025274) Radio
Philips Ibérica,: BE-462-A [Radio] ID = 1025274 933x695
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-462-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1956 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 EBC90 EL84 EZ80
schematic requested
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 150 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BE-462-A - Philips Ibérica, COPRESA,
Material Bakelite case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 420 x 310 x 210 mm / 16.5 x 12.2 x 8.3 inch
Price in first year of sale 2'694.00 ESP
External source of data Ernst Erb
Source of data Radio Historia y Técnica, J.J.E.
Literature/Schematics (1) -- Original-techn. papers. (Anuncio La Vanguardia 7 Octubre 1956)
