BE-472-A; Philips Ibérica, (ID = 411024) Radio

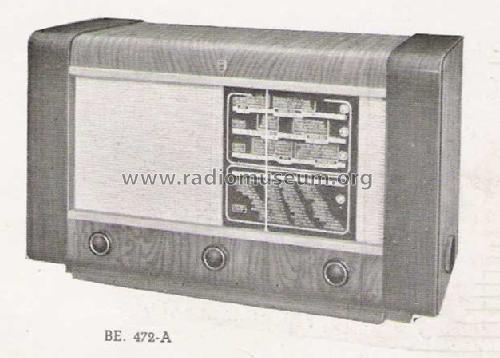

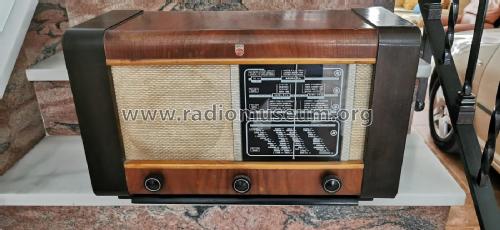

Philips Ibérica,: BE-472-A [Radio] ID = 411024 855x641
Select picture or schematic to display from thumbnails on the right and click for download.
For model BE-472-A, Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona

Country:  Spain
Manufacturer / Brand:  Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes; Madrid, Barcelona
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner

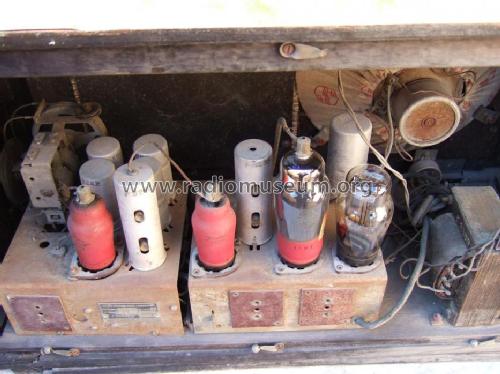

Valves / Tubes 4: ECH4 ECH4 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 470 kHz; 2 AF stage(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
Power out
from Radiomuseum.org Model: BE-472-A - Philips Ibérica, COPRESA,
Material Wooden case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 590 x 350 x 255 inch / 14986 x 8890 x 6477 mm
Price in first year of sale 2'999.00 ESP
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
