For model Bellini Vollautomatic 23TD315A /00 /06, Philips Radios - Deutschland:
Bellini Vollautomatik

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1961/1962 Category: Television Receiver (TV) or Monitor
Valves / Tubes 23: PC86 PC86 PCC88 PCF80 EF183 EF184 EF184 PCF80 PCL84 PCF80 ECH81 PCF80 PCF80 PF86 PCL82 ECC82 PCF80 PL36 PY88 DY86 PCL82 PL84 AW59-90
Semiconductors (the count is only for transistors) OA70 OA81 OA202 OA214 BA100
Main principle Super-Heterodyne (Super in general); ZF/IF 38900 kHz; something special ? Please give information (notes)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details Radio Control (+Remote Wire etc)
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Bellini Vollautomatic 23TD315A /00 /06 - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 590 x 530 x 390 mm / 23.2 x 20.9 x 15.4 inch
Notes

Ausführung: -00 dunkel; -06 hell

Aufwändige Regelungen, Miller Transitron, Vertikalautomatik, eisenlose Gegentakt NF-Endstufe mit hochohmigem dynamischem Lautsprecher.

VHF Kanalwähler Typ A3 300 40

UHF Kanalwähler Typ A3 792 95

Fernbedienung KR 357 58 Typ 60

Net weight (2.2 lb = 1 kg) 25 kg / 55 lb 1.1 oz (55.066 lb)
Price in first year of sale 968.00
Collectors' prices
Source of data HdB d.Rdf-& Ferns-GrH 1961/62

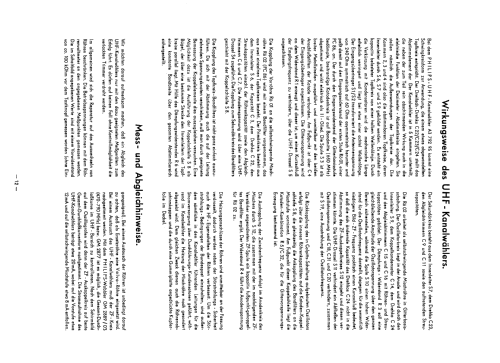

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Jörg Kirchhof. See "Data change" for further contributors.
