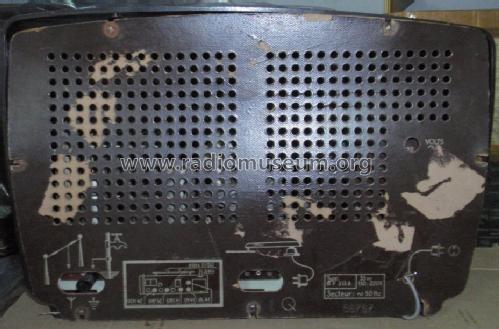

Goélette BF313A , BF313A /25; Philips France; (ID = 1850041) Radio Goélette BF313A , BF313A /25; Philips France; (ID = 1850045) Radio
Goélette BF313A , BF313A /25; Philips France; (ID = 1476982) Radio Goélette BF313A , BF313A /25; Philips France; (ID = 1483879) Radio
Goélette BF313A , BF313A /25; Philips France; (ID = 1483880) Radio
Use red slider bar for more.

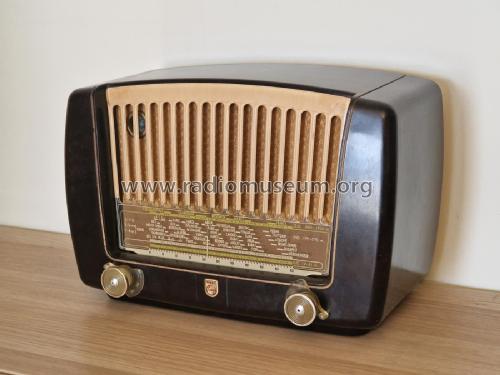

Goélette BF313A , BF313A /25; Philips France; (ID = 2309497) Radio
Philips France;: Goélette BF313A , BF313A /25 [Radio] ID = 2309497 1400x1057
Select picture or schematic to display from thumbnails on the right and click for download.
For model Goélette BF313A , BF313A /25, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: UCH42 UAF42 UBC41 UL41 UM4 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: Goélette BF313A , BF313A /25 - Philips France; Paris
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 393 x 260 x 183 mm / 15.5 x 10.2 x 7.2 inch
Notes

3 gammes d'ondes: OC de 16 à 51 m, PO de 185 à 575 m, et GO de 1150 à 1950 m. Réglage de tonalité. Indicateurs d'ondes et de tonalité éclairés. Prise pick-up commutée.

Coffret bakélite. Grille-cadran en polystyrol forme « éventail », éclairé. Lampes d'éclairage: 2 x 8034D-00 (E10, 10V, 200mA).

Alimentation secteur alternatif seulement (malgré les tubes de série U), 50 périodes. Exécution /25 pour secteur 25 périodes.

Modèle de base: BF311A (sans oeil magique). Équivalent au Radiola RA36A.

Mentioned in -- Original-techn. papers.
Literature/Schematics (1) -- Original prospect or advert

Model page created by Mark Hippenstiel. See "Data change" for further contributors.
