For model La Lyre BF311A , BF311A /25, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17 cm = 6.7 inch
Power out
from Radiomuseum.org Model: La Lyre BF311A , BF311A /25 - Philips France; Paris

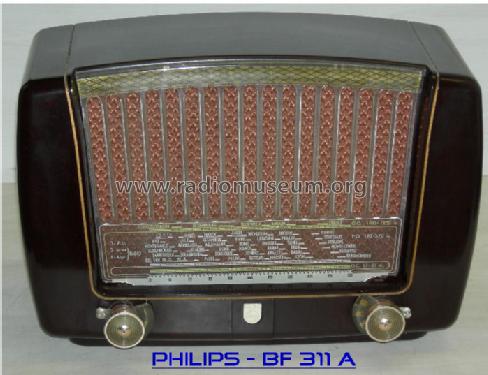

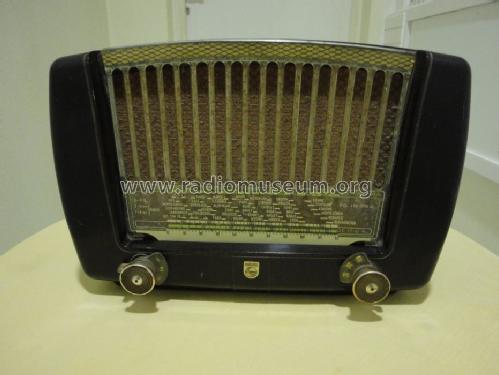

Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 393 x 260 x 183 mm / 15.5 x 10.2 x 7.2 inch
Notes

3 gammes d'ondes: OC de 16 à 51 m, PO de 185 à 575 m, et GO de 1150 à 1950 m. Réglage de tonalité. Indicateurs d'ondes et de tonalité éclairés. Prise pick-up commutée.

Coffret bakélite. Grille-cadran en polystyrol forme « éventail », éclairé. Lampes d'éclairage: 2 x 8034D-00 (E10, 10V, 200mA).

Alimentation secteur alternatif seulement (malgré les tubes de série U), 50 périodes. Exécution /25 pour secteur 25 périodes.

Existe aussi avec oeil magique comme BF313A. Équivalent au Radiola RA35A.

Net weight (2.2 lb = 1 kg) 5.750 kg / 12 lb 10.6 oz (12.665 lb)
Price in first year of sale 22'800.00 FRF
Mentioned in -- Original prospect or advert

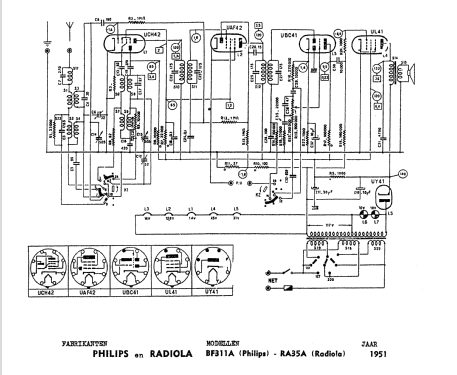

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Lutwin Berndt † 5.10.14. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 584 models, 521 with images and 322 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips France;: La Lyre BF311A , BF311A /25
Threads: 1 | Posts: 2
Hits: 1853     Replies: 1
Philips BF311A welche Kondensatoren
Dieter Wiedemann
02.Apr.09
  1

Wer kann mir helfen,es sind 2 Kondensatoren deren Bezeichnung mir nichts sagt,welche Ersatz Kondensatoren kann ich verwenden?

Attachments

Franz-Josef Haffner
02.Apr.09
  2

µ * µ = p

10 hoch minus 6 * 10 hoch minus 6 = 10 hoch minus 12 = pF

also im ersten Fall 5000pF ( = 5nF) und im zweiten Fall 100 pF

Anhand der Position der Bauteile und den Angaben im Schaltplan müssen die Werte auch gut zu finden sein.

Gruß,
Franz-Josef
