Caravelle BF523A

Caravelle BF523A; Philips France; (ID = 169687) Radio

Caravelle BF523A; Philips France; (ID = 169688) Radio

Caravelle BF523A; Philips France; (ID = 169689) Radio

Caravelle BF523A; Philips France; (ID = 169690) Radio

Caravelle BF523A; Philips France; (ID = 169691) Radio

Caravelle BF523A; Philips France; (ID = 169692) Radio

Caravelle BF523A; Philips France; (ID = 169693) Radio

Caravelle BF523A; Philips France; (ID = 169694) Radio

Caravelle BF523A; Philips France; (ID = 169696) Radio

Caravelle BF523A; Philips France; (ID = 169697) Radio
Caravelle BF523A; Philips France; (ID = 169839) Radio Caravelle BF523A; Philips France; (ID = 169840) Radio
Caravelle BF523A; Philips France; (ID = 169703) Radio Caravelle BF523A; Philips France; (ID = 1054459) Radio
Caravelle BF523A; Philips France; (ID = 1483864) Radio Caravelle BF523A; Philips France; (ID = 1483865) Radio
Caravelle BF523A; Philips France; (ID = 1623610) Radio Caravelle BF523A; Philips France; (ID = 1623611) Radio
Caravelle BF523A; Philips France; (ID = 1623612) Radio Caravelle BF523A; Philips France; (ID = 1623614) Radio
Use red slider bar for more.
Caravelle BF523A; Philips France; (ID = 169839) Radio
Philips France;: Caravelle BF523A [Radio] ID = 169839 570x431
Select picture or schematic to display from thumbnails on the right and click for download.
For model Caravelle BF523A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH42 EAF42 EBC41 EL41 EM34 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details

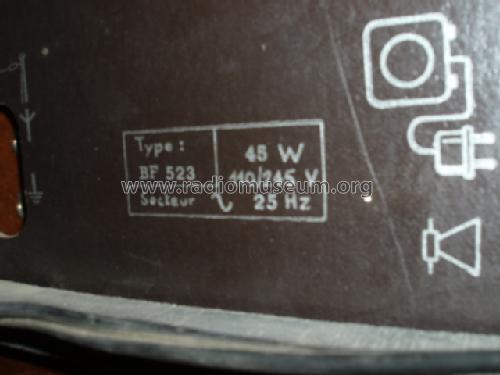

Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 2.5 W (unknown quality)
from Radiomuseum.org Model: Caravelle BF523A - Philips France; Paris
Material Various materials

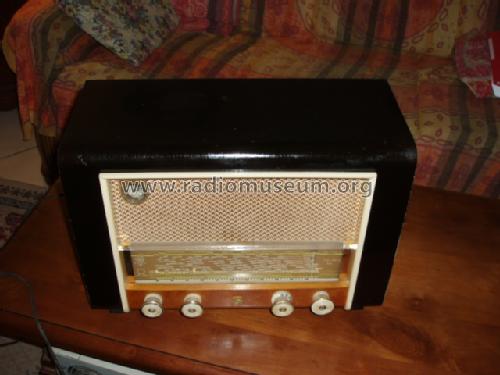

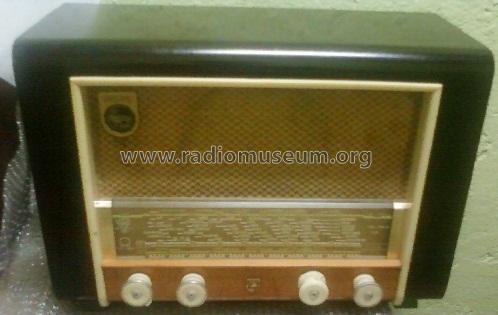

Shape Tablemodel, low profile (big size).
Dimensions (WHD) 455 x 322 x 200 mm / 17.9 x 12.7 x 7.9 inch
Notes

Bande 49 m.étalée.

2 réglages de tonalité séparés pour notes basses et notes élevées.

Prise pick-up commutée.

Prise pour H.P.S.

Coffret bois placage noyer, décoration sycomore.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)

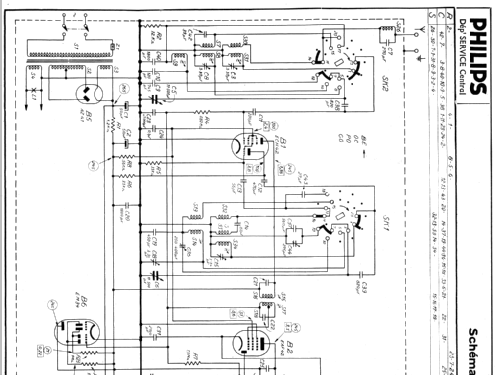

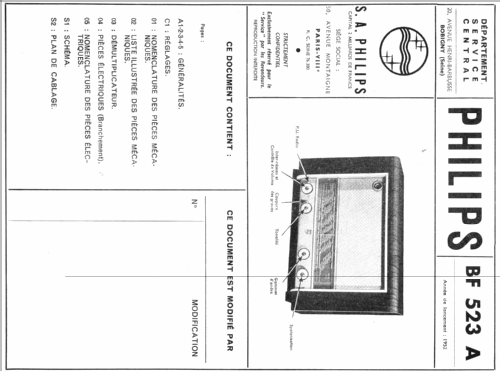

Mentioned in -- Original-techn. papers.

Model page created by Franz-Josef Haffner. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 544 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips France;: Caravelle BF523A
Threads: 1 | Posts: 1
Hits: 1975     Replies: 0
philips: BF523A (BF 523 A); Fremdsprachen erlernen
Franz-Josef Haffner
18.Jan.06
  1 Diese Dokumentation ist ideal dazu geeignet radiotechnisches Französisch zu erlernen!

Gruß,
Franz-Josef
