BF591A

BF591A; Philips France; (ID = 1766322) Radio

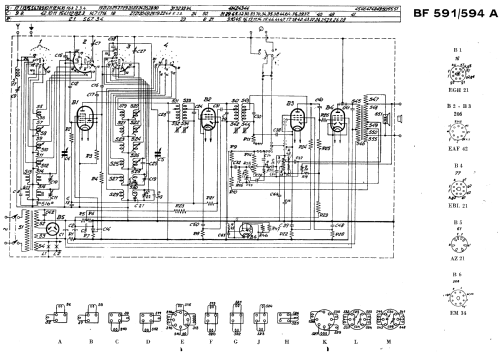

BF591A; Philips France; (ID = 1766323) Radio

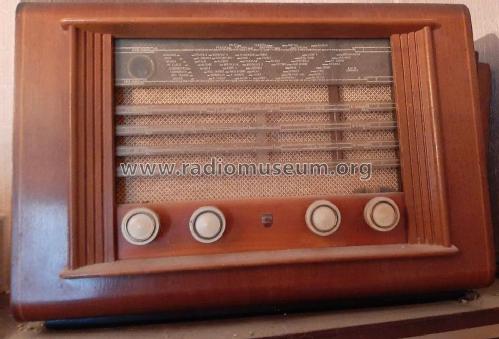

BF591A; Philips France; (ID = 700660) Radio
Use red slider bar for more.
BF591A; Philips France; (ID = 700660) Radio
Philips France;: BF591A [Radio] ID = 700660 252x93
Select picture or schematic to display from thumbnails on the right and click for download.
For model BF591A, Philips France; Paris:
Original-techn. papers

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: ECH21 EAF42 EAF42 EBL21 EM34 AZ1
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent or electro-dynamic (moving coil), system not known yet. / Ø 21 cm = 8.3 inch
Power out
from Radiomuseum.org Model: BF591A - Philips France; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 500 x 350 x 265 mm / 19.7 x 13.8 x 10.4 inch
Notes Philips BF591A;
Four SW bands, 50 W power consumption.
Net weight (2.2 lb = 1 kg) 10.6 kg / 23 lb 5.6 oz (23.348 lb)
Price in first year of sale 34'950.00 F
Source of data -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
