BF371A

• Country
• France

• Manufacturer / Brand
• Philips France; Paris

• Year
• 1947

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 130838

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• ECH3 ECF1 EBL1 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 472 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 2.8 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: BF371A - Philips France; Paris

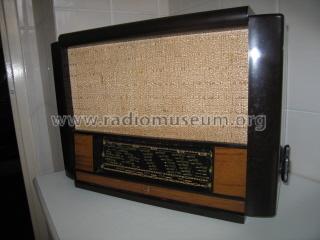

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 300 x 230 mm / 15.7 x 11.8 x 9.1 inch

• Notes

• Gleiches Chassis wie Radiola RA73A mit anderem Gehäuse.

  ---

  AM radio with extenal antenne:
  • LW: 150 - 261 kHz.
  • BC: 525 - 1580 kHz.
  • SW: 4,8 - 18,7 MHz.

  Dial lamps: 8045D (E10, 6.3V / 320mA).



• Net weight (2.2 lb = 1 kg)
• 7.2 kg / 15 lb 13.7 oz (15.859 lb)

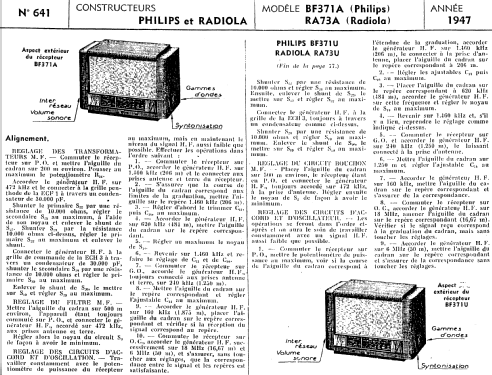

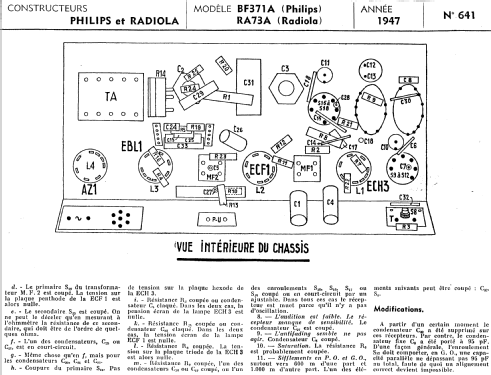

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Norbert Haselbach. See "Data change" for further contributors.
