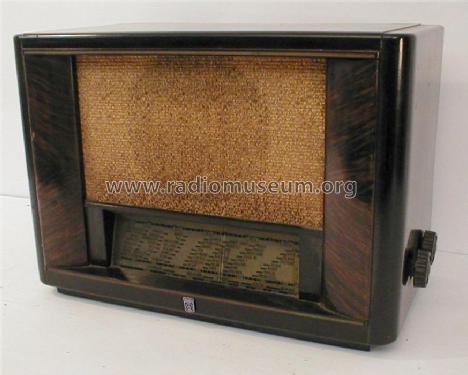

Radiola marque: RA73A [Radio] ID = 87331 919x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model RA73A, Radiola (marque)

Country:  France
Manufacturer / Brand:  Radiola (marque)
Brand

SFER
Year: 1947 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 ECF1 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 130, 220, 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: RA73A - Radiola marque
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 420 x 300 x 230 mm / 16.5 x 11.8 x 9.1 inch
Notes

Similar to Philips BF371A  and Siera S220A.

Net weight (2.2 lb = 1 kg) 7.6 kg / 16 lb 11.8 oz (16.74 lb)
Source of data Le grand livre de la TSF

Model page created by Patrice Zeissloff. See "Data change" for further contributors.



All listed radios etc. from Radiola (marque)
Here you find 824 models, 519 with images and 268 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
