BI190/U

BI190/U; Philips Italy; (ID = 252051) Radio
BI190/U; Philips Italy; (ID = 355538) Radio BI190/U; Philips Italy; (ID = 652923) Radio
BI190/U; Philips Italy; (ID = 699211) Radio BI190/U; Philips Italy; (ID = 1018116) Radio
BI190/U; Philips Italy; (ID = 355539) Radio BI190/U; Philips Italy; (ID = 652921) Radio
BI190/U; Philips Italy; (ID = 652922) Radio BI190/U; Philips Italy; (ID = 652924) Radio
BI190/U; Philips Italy; (ID = 652925) Radio BI190/U; Philips Italy; (ID = 652926) Radio
Use red slider bar for more.
BI190/U; Philips Italy; (ID = 355538) Radio
Philips Italy;: BI190/U [Radio] ID = 355538 339x254
Select picture or schematic to display from thumbnails on the right and click for download.
For model BI190/U, Philips Italy; Milano (MI):

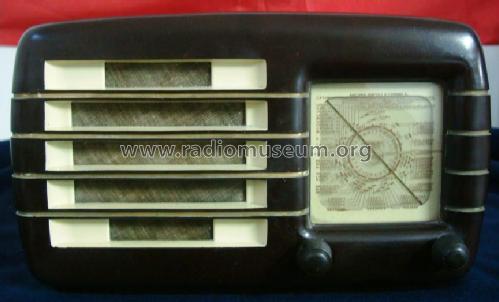

Foto per cortesia del venditore ebay orsomaria62. Manopole probabilmente non originali.

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH41 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 125/160 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: BI190/U - Philips Italy; Milano MI
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 220 x 140 x 120 mm / 8.7 x 5.5 x 4.7 inch
Notes

Il telaio è sempre collegato alla rete elettrica sia in funzionamento CC che CA. Non tutti i casi sono dichiarati poichè spesso chi propone il modello non lo può sapere.

Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 207)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
