BI210A
Philips Italy; Milano (MI)
- Country
- Italy
- Manufacturer / Brand
- Philips Italy; Milano (MI)
- Year
- 1952/1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 96041

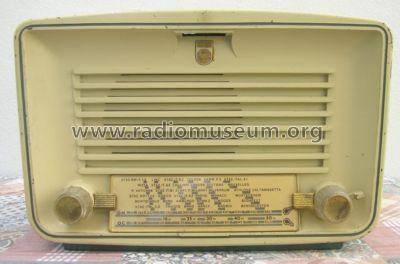

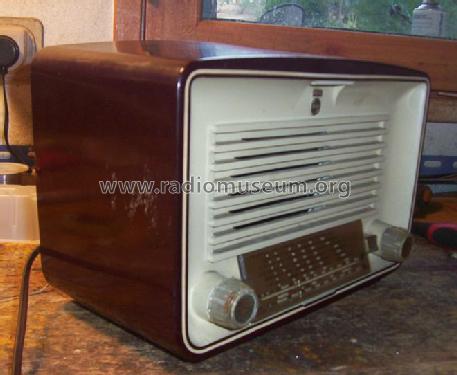

Vista frontale (restauro S.Baldi)

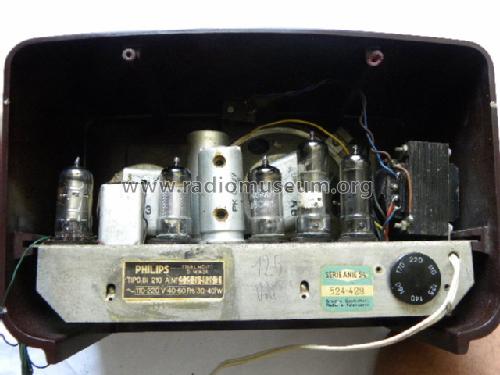

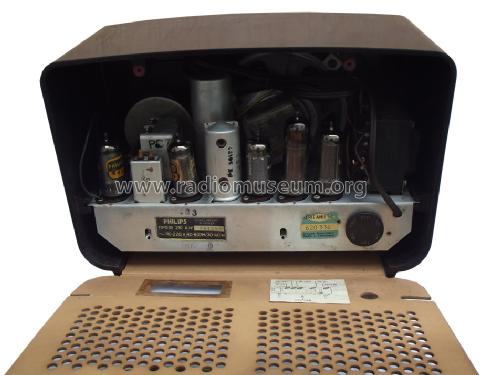

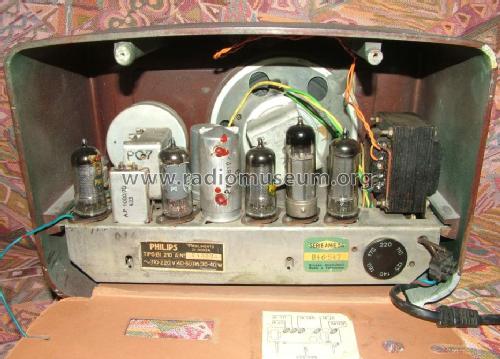

Vista posteriore dello chassis

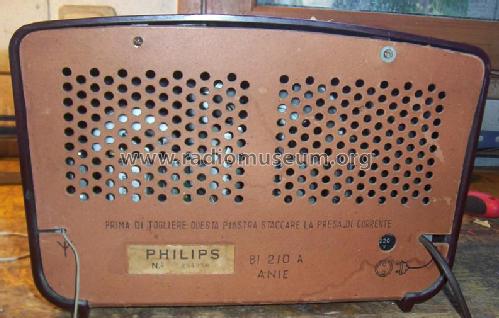

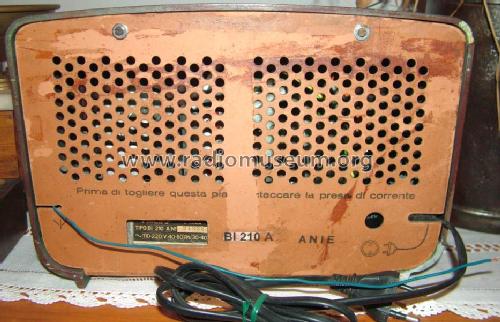

Pannello di chiusura posteriore

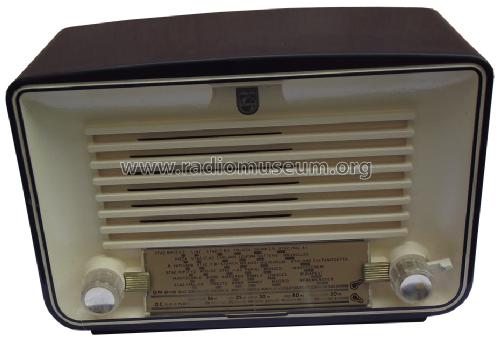

Vista in prospettiva

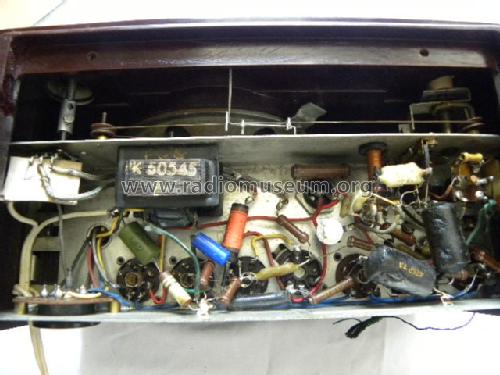

Chassis visto da sotto

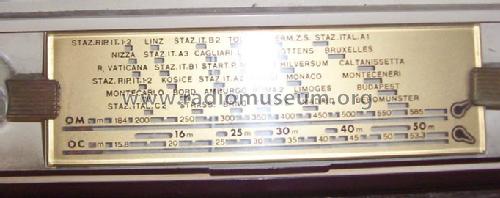

Dettaglio della scala parlante
la radio è denominata ANIE
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 468 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- Alternating Current supply (AC) / 40-60 Hz, 110; 125; 140; 160-170; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13.5 cm = 5.3 inch
- Power out
- 2.3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: BI210A - Philips Italy; Milano MI
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 290 x 190 x 145 inch / 7366 x 4826 x 3683 mm
- Notes
- 2 gamme d'onda.
2 wave bands.
- Source of data
- -- Original prospect or advert
- Literature/Schematics (1)
- -- Schematic
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
