BI252A
Use red slider bar for more.

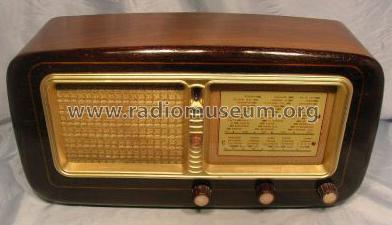

Philips Italy;: BI252A [Radio] ID = 389366 392x225
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1955/1956 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: UCH81 UF41 UBC41 UL41 DM71 UY41 |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast and Short Wave (SW). |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110-220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch |
| Power out | 2 W (unknown quality) |
| from Radiomuseum.org | Model: BI252A - Philips Italy; Milano MI |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 490 x 250 x 185 mm / 19.3 x 9.8 x 7.3 inch |

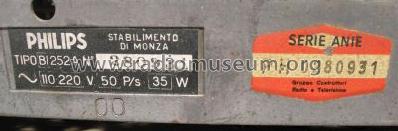

| Notes | Serie ANIE.Autotrafo, keine Netztrennung !!! |
| Net weight (2.2 lb = 1 kg) | 3.9 kg / 8 lb 9.4 oz (8.59 lb) |
| Price in first year of sale | 29'000.00 ITL |
| Source of data | Guida Pratica Antique Radio (1) 1999 |
| Mentioned in | Catalogo ANIE (1956-57) |
Model page created by Alessandro De Poi. See "Data change" for further contributors.
