• Year
  • 1954/1955
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 108065

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 110-220 Volt
  • Loudspeaker
  • Presumably Dynamic Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 1.5 W (unknown quality)
  • Material
  • Bakelite or Plastics (type unknown)
  • from Radiomuseum.org

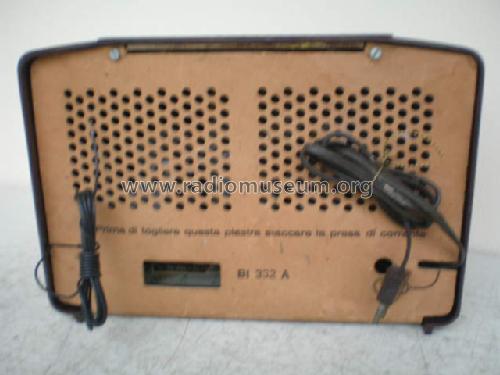

  • Model: BI332A - Philips Italy; Milano MI
  • Shape
  • Tablemodel, low profile (big size).
  • Notes

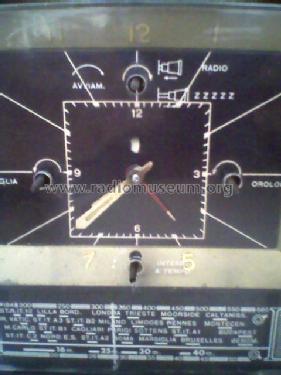

  • Serie Super "M". Presenta sul frontale,sopra la scala parlante, di un orologio elettrico con quattro comandi. Il primo in alto serve ad avviare il motorino dell'orologio, in posizione normale, all'ora prefissata, la sveglia avvia la radio, tirandolo verso l'esterno fà solamente un ronzio. Il secondo pomello,a destra serve a rimettere l'ora. Il terzo, in basso, inserisce l'interruttore a tempo, cioé, dopo un tempo prefissato la radio si spenge. Infine il quarto, a sinistra, serve a rimettere la sveglia.
  • Author
  • Model page created by Alessandro De Poi. See "Data change" for further contributors.
