BI490/A bis

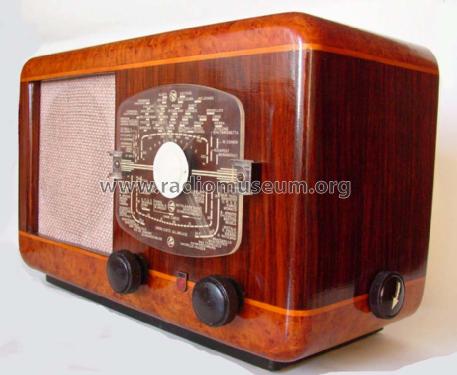

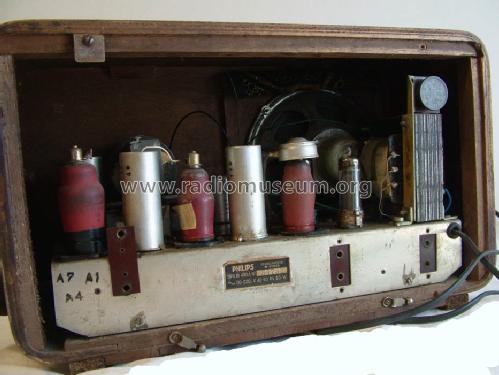

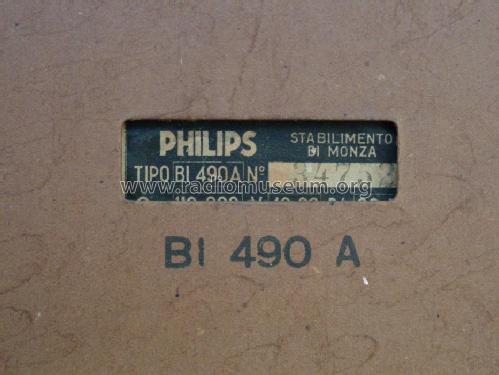

BI490/A bis; Philips Italy; (ID = 257191) Radio
BI490/A bis; Philips Italy; (ID = 1063818) Radio BI490/A bis; Philips Italy; (ID = 1063819) Radio
BI490/A bis; Philips Italy; (ID = 1063820) Radio BI490/A bis; Philips Italy; (ID = 1063821) Radio
BI490/A bis; Philips Italy; (ID = 1063822) Radio BI490/A bis; Philips Italy; (ID = 1063823) Radio
Use red slider bar for more.
BI490/A bis; Philips Italy; (ID = 1063818) Radio
Philips Italy;: BI490/A bis [Radio] ID = 1063818 933x701
Select picture or schematic to display from thumbnails on the right and click for download.
For model BI490/A bis, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH4 EF9 EBC3 EL41 AZ41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 140; 160; 170; 220 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: BI490/A bis - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 430 x 260 x 170 mm / 16.9 x 10.2 x 6.7 inch
Source of data Guida Pratica Antique Radio III (2000)
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 209)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
