BI491A Bakelite

BI491A; Philips Italy; (ID = 255326) Radio
BI491A; Philips Italy; (ID = 1611280) Radio BI491A; Philips Italy; (ID = 1611281) Radio
BI491A; Philips Italy; (ID = 700084) Radio BI491A; Philips Italy; (ID = 1611282) Radio
BI491A; Philips Italy; (ID = 1030184) Radio BI491A; Philips Italy; (ID = 1030185) Radio
BI491A; Philips Italy; (ID = 1077463) Radio BI491A; Philips Italy; (ID = 1105187) Radio
BI491A; Philips Italy; (ID = 1105189) Radio BI491A; Philips Italy; (ID = 1105191) Radio
Use red slider bar for more.
BI491A; Philips Italy; (ID = 1611280) Radio
Philips Italy;: BI491A [Radio] ID = 1611280 900x533
Select picture or schematic to display from thumbnails on the right and click for download.
For model BI491A Bakelite, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1951/1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH41 UAF42 UAF42 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 468 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details

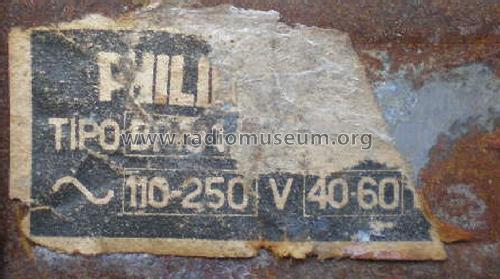

Power type and voltage Alternating Current supply (AC) / 110-125; 145-160; 220-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: BI491A [Bakelite] - Philips Italy; Milano MI
Material Bakelite case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 460 x 260 x 180 mm / 18.1 x 10.2 x 7.1 inch
Notes

Onde Medie, onde Corte e 2 bande allargate di onde Corte: 25 e 31 metri.

Price in first year of sale 35'000.00 ITL
Source of data Guida Pratica Antique Radio II (2000)
Literature/Schematics (1) Schemi di apparecchi radio ( Ravalico 1953 ) (pag. 210)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
