• Country
• Indonesia

• Manufacturer / Brand
• Philips Ralin Indonesia

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 199410

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 UF41 UBC41 UL41 UY41

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Short Wave (SW only)

• Power type and voltage
• AC/DC-set / 110-127 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11.3 cm = 4.4 inch

• Power out
• 2 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

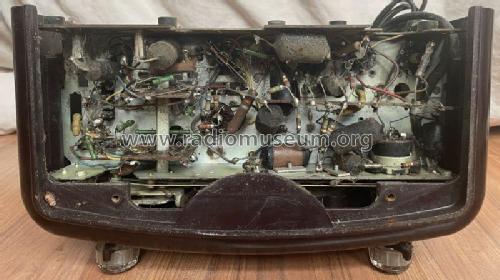

• Model: BIN326U - Philips Ralin Indonesia

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 280 x 180 x 160 mm / 11 x 7.1 x 6.3 inch

• Notes

• Assembled in Surabaya.

  Waveranges:

  • 13.8 - 46.9 meter
  • 19 - 25.2 meter (bandspread)
  • 45 - 140 meter

  Loudspeaker type 9742X (original) or AD3500X (replacement).

• Price in first year of sale
• 625.00 Rupiah

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Gidi Verheijen. See "Data change" for further contributors.
