• Year
  • 1950
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 96937

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 4
  • Main principle
  • Superheterodyne (common); ZF/IF 452 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 20 cm = 7.9 inch
  • Power out
  • 2 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org

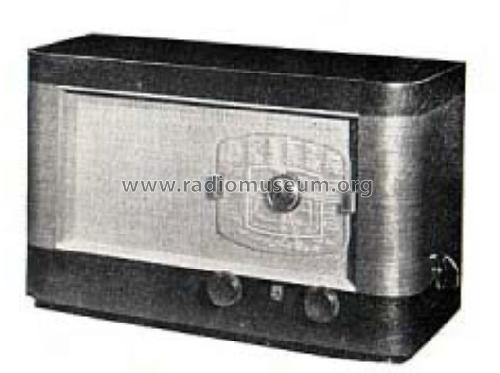

  • Model: BN381A - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 19 x 11.5 x 7.5 inch / 483 x 292 x 191 mm
  • Notes
  • Like BX380A. Has an additional band for fishery frequencies.
  • Net weight (2.2 lb = 1 kg)
  • 7.4 kg / 16 lb 4.8 oz (16.3 lb)
  • Price in first year of sale
  • 225.00 Hfl
  • Author
  • Model page created by John Koster. See "Data change" for further contributors.
