BS241A

BS241A; Philips, Svenska AB, (ID = 805822) Radio BS241A; Philips, Svenska AB, (ID = 805823) Radio
BS241A; Philips, Svenska AB, (ID = 805824) Radio
Use red slider bar for more.

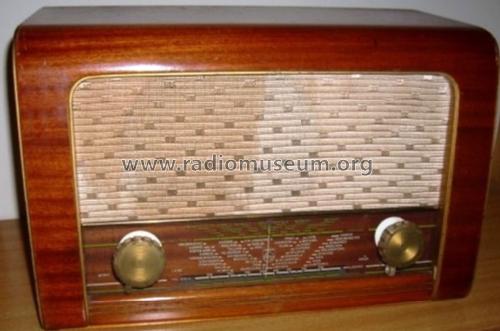

BS241A; Philips, Svenska AB, (ID = 805822) Radio
Philips, Svenska AB,: BS241A [Radio] ID = 805822 505x335
Select picture or schematic to display from thumbnails on the right and click for download.
For model BS241A, Philips, Svenska AB, Stockholm:
My own collection.

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1954 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH81 EBF80 EF41 EL84 EZ80
schematic requested
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16 cm = 6.3 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: BS241A - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 350 x 228 x 185 mm / 13.8 x 9 x 7.3 inch
Net weight (2.2 lb = 1 kg) 4.9 kg / 10 lb 12.7 oz (10.793 lb)
Collectors' prices

Model page created by Antonio Dias Rodrigues. See "Data change" for further contributors.
