Butterfly FCH562A

Butterfly FCH562A; Philips - Schweiz (ID = 19498) Radio

Butterfly FCH562A; Philips - Schweiz (ID = 19499) Radio
Butterfly FCH562A; Philips - Schweiz (ID = 367466) Radio Butterfly FCH562A; Philips - Schweiz (ID = 367469) Radio
Butterfly FCH562A; Philips - Schweiz (ID = 367467) Radio Butterfly FCH562A; Philips - Schweiz (ID = 112990) Radio
Use red slider bar for more.
Butterfly FCH562A; Philips - Schweiz (ID = 367466) Radio

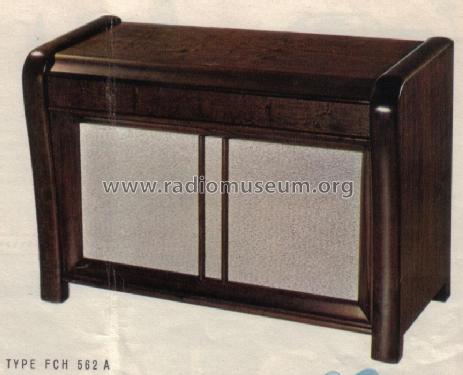

Philips - Schweiz: Butterfly FCH562A [Radio] ID = 367466 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
For model Butterfly FCH562A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1947–1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EF22 ECH21 ECH21 EBL21 EM4 AZ1
Main principle Superhet with RF-stage; ZF/IF 468 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details Record Player (perh.Changer)
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out
from Radiomuseum.org Model: Butterfly FCH562A - Philips - Schweiz
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 999 x 720 x 400 mm / 39.3 x 28.3 x 15.7 inch
Price in first year of sale 1'975.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
