Philips; Eindhoven: BX115U [Radio] ID = 2122524 1368x977

Select picture or schematic to display from thumbnails on the right and click for download.

For model BX115U (-00) dial without station names, Philips; Eindhoven (tubes international!); Miniwatt:
Gerät steht in der Sammlung 'Philips Historische Producten' in Eindhoven.

Country:

Netherlands

Manufacturer / Brand:

Philips; Eindhoven (tubes international!); Miniwatt

Year: 1951/1952

Category: Broadcast Receiver - or past WW2 Tuner

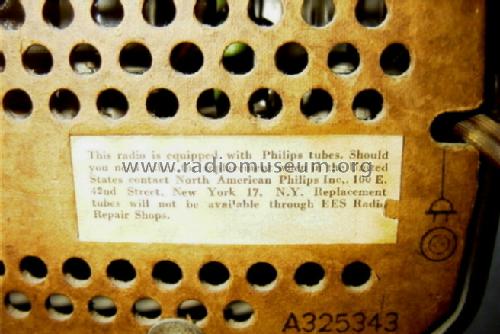

Valves / Tubes

5: UCH42 UF41 UBC41 UL41 UY41

Main principle	Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits	6 AM circuit(s)
Wave bands	Broadcast only (MW).
Details
Power type and voltage	AC/DC-set / 127; 220 Volt
Loudspeaker	Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org	Model: BX115U [dial without station names] - Philips; Eindhoven tubes
Material	Bakelite case
Shape	Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD)	260 x 165 x 125 mm / 10.2 x 6.5 x 4.9 inch
Notes	AM radio for external antenna, BC only. Reception range: 517 - 1622 kHz Loudspeaker: 9742X (5Ω) Dial lamp: 8034D (E10, 10V, 200mA) There is no switch present for changing the mains voltage. The conversion from 220 V to 127 V is done by shorting the resistors R11 and R12 with wires. See also BX115U -01 which works on 127 V AC/DC only. This model is equipped with many variations of dial scales: with frequency only, 15...5 1/2 with frequency only, but 16...5 with frequency and wavelength with frequency and wavelength, criss-cross line below with station names and wavelength Suffix -00 only shows on technical documentation, not on type plates.
Net weight (2.2 lb = 1 kg)	2.2 kg / 4 lb 13.5 oz (4.846 lb)
Price in first year of sale	98.00 HFL
Mentioned in	-- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
