BX115U -01

BX115U -01; Philips; Eindhoven (ID = 1628051) Radio
BX115U -01; Philips; Eindhoven (ID = 1347966) Radio BX115U -01; Philips; Eindhoven (ID = 1347965) Radio
BX115U -01; Philips; Eindhoven (ID = 1347964) Radio
Use red slider bar for more.
BX115U -01; Philips; Eindhoven (ID = 1347966) Radio

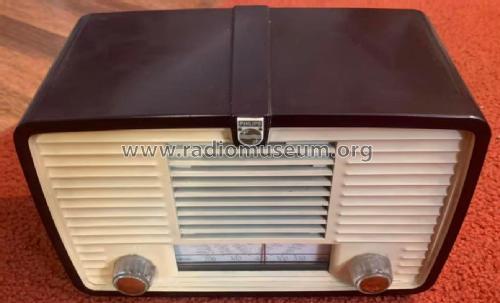

Philips; Eindhoven: BX115U -01 [Radio] ID = 1347966 933x629
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX115U -01, Philips; Eindhoven (tubes international!); Miniwatt:
Bild aus Anzeige auf 'Marktplaats' (NL).

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1951/1952 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UF41 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 127 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: BX115U -01 - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 260 x 165 x 125 mm / 10.2 x 6.5 x 4.9 inch
Notes

AM radio for external antenna, BC reception only.

Reception range: 517 - 1622 kHz
Loudspeaker: 9742X (5 Ω)
Dial lamp: 8034D (E10, 10 V, 200 mA)

This is the same model as BX115U -00 with the exception that this version /01 lacks the resistors for adapting to 220 V mains. The technical service manuals states 127 V (the uploaded picture of the type label mentions 117 V).

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Gidi Verheijen. See "Data change" for further contributors.
