For model BX281U /00, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1948/1949 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY1N
Main principle Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 11 cm = 4.3 inch
Power out
from Radiomuseum.org Model: BX281U /00 - Philips; Eindhoven tubes

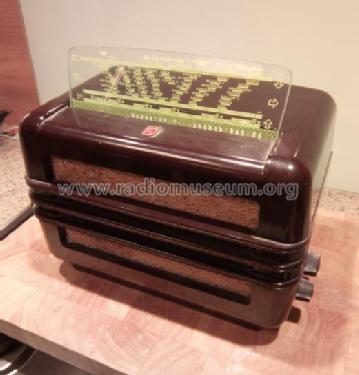

Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes

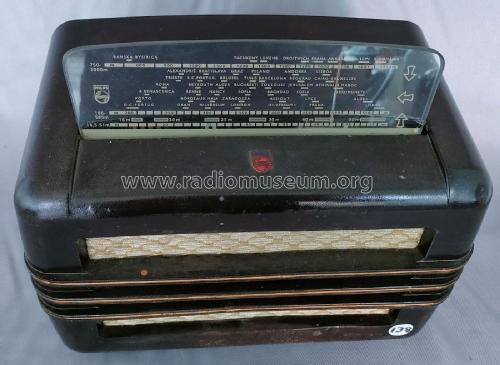

AM radio for external antenna:
  • LW: 157 - 400 kHz.
  • BC: 530 - 1500 kHz.
  • SW: 5,88- 18,2 MHz.
Loudspeaker: there are 2 possibilities: type 9712-06 (5Ω) or type 9730 (5Ω).
Dial lamp: 8095D (19V/90mA).

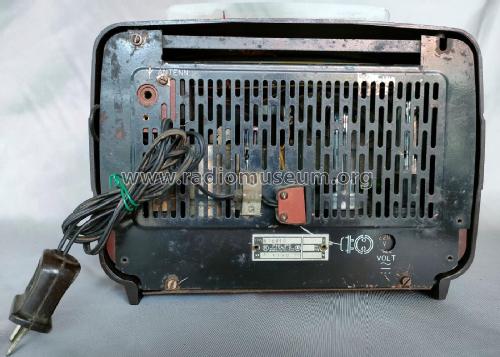

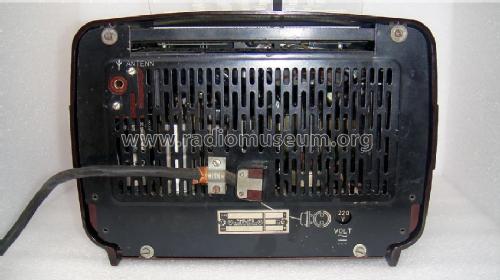

The mains voltage can be adapted to 110 or 200 volt by short-circuiting resistor R37.

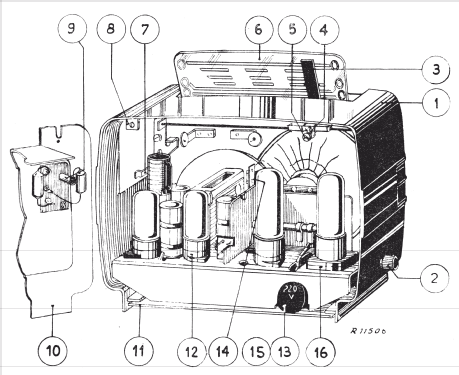

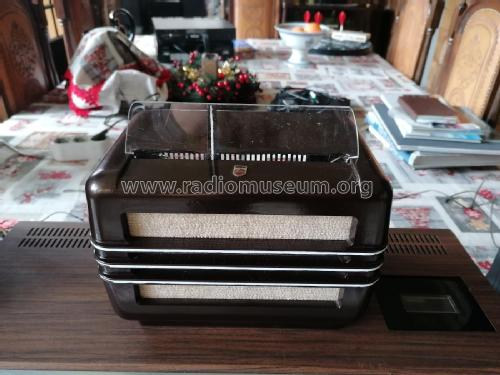

There are multiple versions in existence where the difference is the color of the cabinet and the buttons: see technical service manual uploaded with this model.

Price in first year of sale 135.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
