BX307U from Eindhoven

BX307U; Philips; Eindhoven (ID = 42745) Radio

BX307U; Philips; Eindhoven (ID = 42746) Radio

BX307U; Philips; Eindhoven (ID = 42747) Radio

BX307U; Philips; Eindhoven (ID = 42748) Radio

BX307U; Philips; Eindhoven (ID = 42749) Radio

BX307U; Philips; Eindhoven (ID = 42750) Radio

BX307U; Philips; Eindhoven (ID = 42751) Radio

BX307U; Philips; Eindhoven (ID = 42752) Radio
BX307U; Philips; Eindhoven (ID = 210604) Radio BX307U; Philips; Eindhoven (ID = 210606) Radio
BX307U; Philips; Eindhoven (ID = 210605) Radio BX307U; Philips; Eindhoven (ID = 210607) Radio
BX307U; Philips; Eindhoven (ID = 210608) Radio
Use red slider bar for more.
BX307U; Philips; Eindhoven (ID = 210604) Radio
Philips; Eindhoven: BX307U [Radio] ID = 210604 820x615
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX307U from Eindhoven, Philips; Eindhoven (tubes international!); Miniwatt:
Front

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1950/1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 117; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: BX307U [from Eindhoven] - Philips; Eindhoven tubes
Material Bakelite case
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 270 x 200 x 190 mm / 10.6 x 7.9 x 7.5 inch
Notes

Wave Bands: MW 200m-550m; SW1=30m-90m; SW2=13m-25m

See also model BX307U made by Philips Leuven (Belgium).

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)

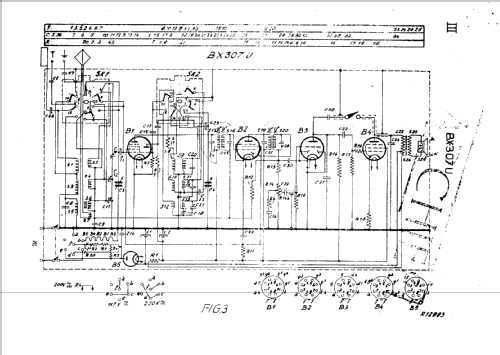

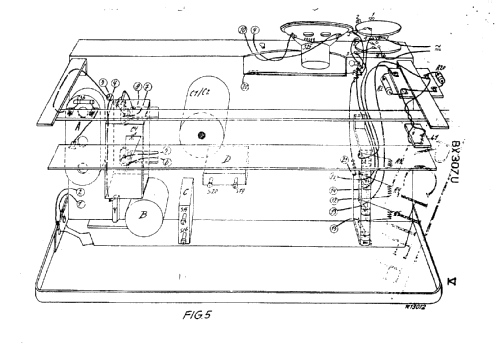

Literature/Schematics (1) -- Original-techn. papers.

Model page created by Iven Müller. See "Data change" for further contributors.
