BX307U from Leuven

BX307U; Philips Belgium (ID = 2359537) Radio

BX307U; Philips Belgium (ID = 2359538) Radio
BX307U; Philips Belgium (ID = 1053587) Radio BX307U; Philips Belgium (ID = 1053588) Radio

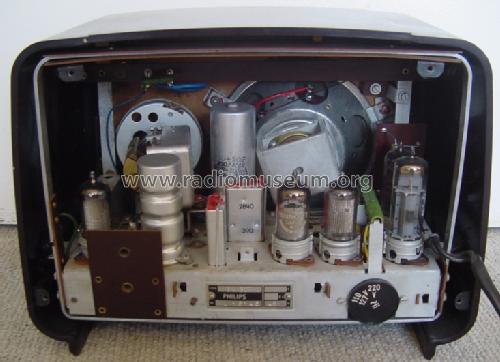

BX307U; Philips Belgium (ID = 1053589) Radio
Use red slider bar for more.

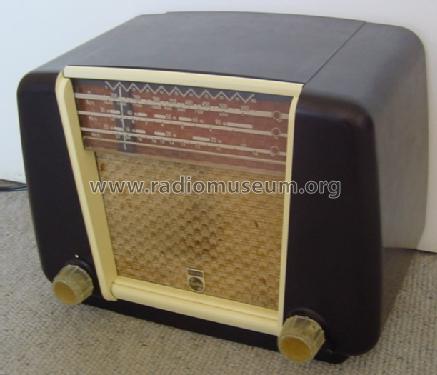

BX307U; Philips Belgium (ID = 1053587) Radio
Philips Belgium: BX307U [Radio] ID = 1053587 613x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model BX307U from Leuven, Philips Belgium (Belgien)

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1950/1951 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: UCH42 UAF42 UBC41 UL41 UY41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 117; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: BX307U [from Leuven] - Philips Belgium Belgien
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 190 x 190 mm / 10.6 x 7.5 x 7.5 inch
Notes

   ►MW = 187 - 565m
   ►KW1 = 13,5 - 28m
   ►KW2 = 30 - 90m

Siehe auch BX307U - Philips; Eindhoven.

The factory in L e u v e n produced mostly audio equipment such as radio sets, receivers and amplifiers both for the local market and for export under various brands and model types. Sometimes marked "Made in Holland".

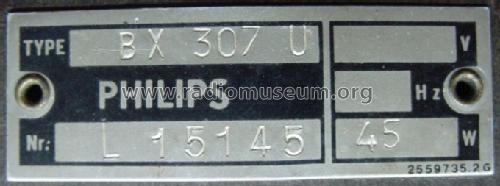

The origin letters used in front of the serial number and on separate chassis labels are L or later PL for L e u v e n, AG for Brugge and H or later AH for Hasselt.

Net weight (2.2 lb = 1 kg) 3.2 kg / 7 lb 0.8 oz (7.048 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Wolfgang Bauer. See "Data change" for further contributors.
