- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1951/1952
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29833
Gerät eines Sammlerkollegen

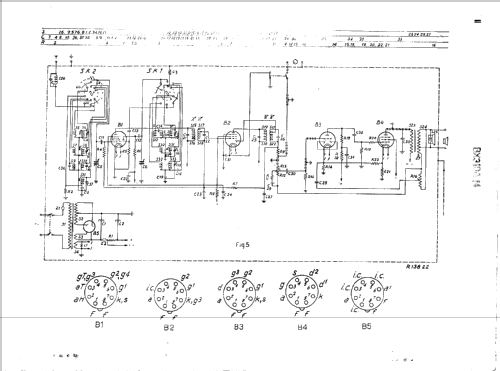

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
- Power out
- 3 W (unknown quality)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: BX310A /14 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 380 x 250 x 200 mm / 15 x 9.8 x 7.9 inch
- Notes
-
This model has an extra band for fishery frequencies.
AM radio for external antenna:- LW: 152 - 285 kHz.
- BC: 517 - 1622 kHz.
- SW1: 1,58 - 5 MHz.
- SW2: 5,92 - 18,2 MHz.
Loudspeaker: 9744X (5Ω).Dial lamp: 8045D (E10, 6,3V/320mA).
- Net weight (2.2 lb = 1 kg)
- 5.8 kg / 12 lb 12.4 oz (12.775 lb)
- Price in first year of sale
- 259.00 Hfl
- External source of data
- Erb
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Literature/Schematics (1)

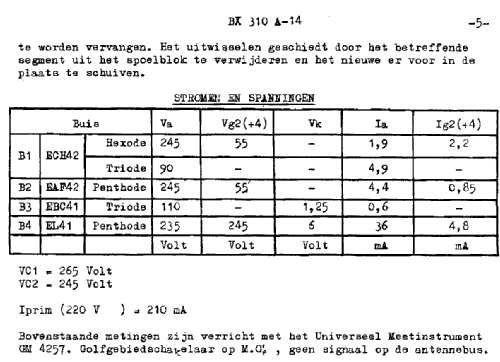

- -- Original-techn. papers.
