BX321A /12

• Country
• Belgium

• Manufacturer / Brand
• Philips Belgium (Belgien)

• Year
• 1953

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 250318

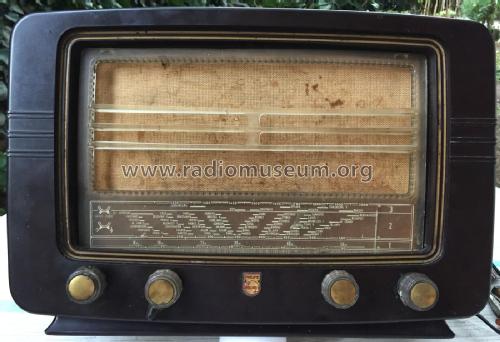

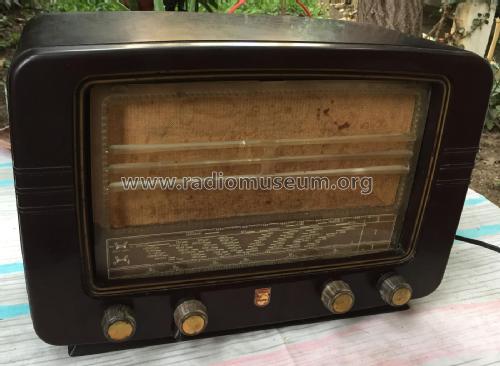

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

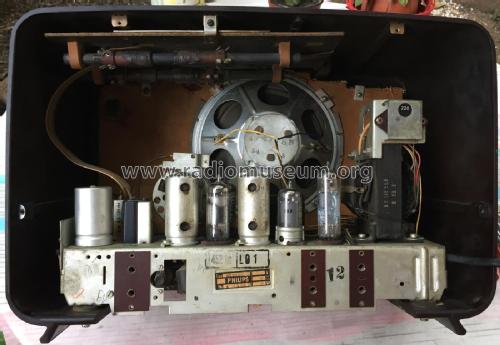

• Valves / Tubes
• ECH81 EBF80 EBC41 EL84

• Number of Transistors

• Semiconductors

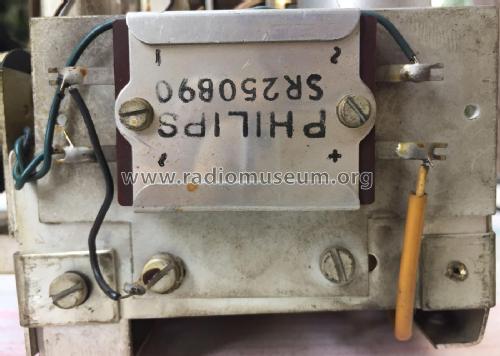

• SR250B90

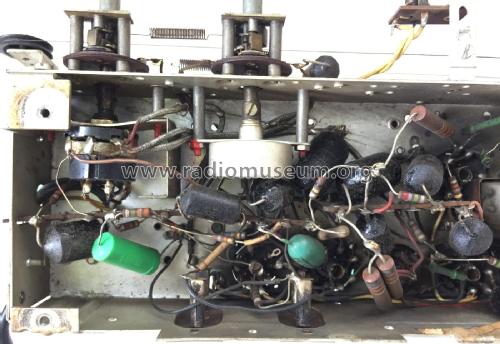

• Main principle
• Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

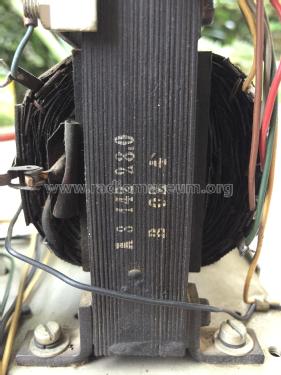

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch

• Power out
• 5 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org
• Model: BX321A /12 - Philips Belgium Belgien

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 400 x 265 x 200 mm / 15.7 x 10.4 x 7.9 inch

• Notes
• AM radio BX321A /12 with built-in ferroceptor:
  • LW: 152 - 285 kHz.
  • BC: 517 - 1622 kHz.
  • SW: 5,92 - 18,2 MHz.

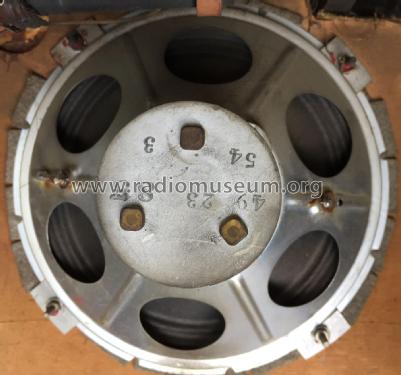

  Loudspeakers: 9768X (5Ω).

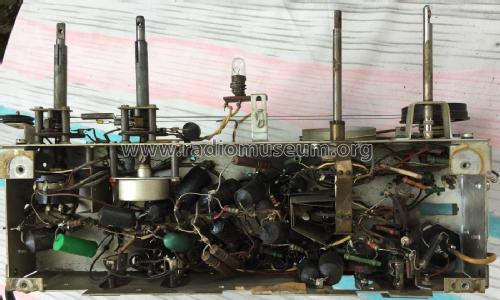

  Dial lamp: 8045D (E10, 6.3V/320mA).

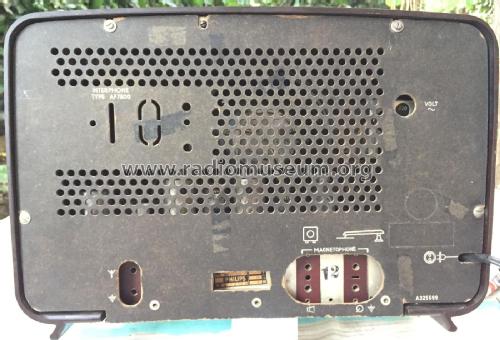

  There is also a version /10 with a AZ41 rectifier instead of a semiconductor bridge.

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Radiomuseum Olen Museum. See "Data change" for further contributors.
