For model BX390A, Philips; Eindhoven (tubes international!); Miniwatt

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1949/1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: ECH42 EAF42 EBC41 EL41 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details

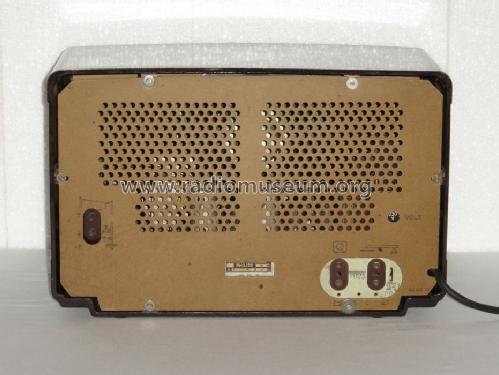

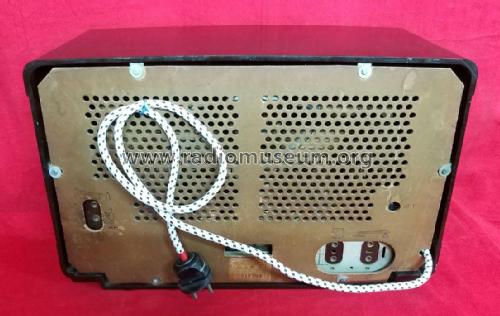

Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: BX390A - Philips; Eindhoven tubes

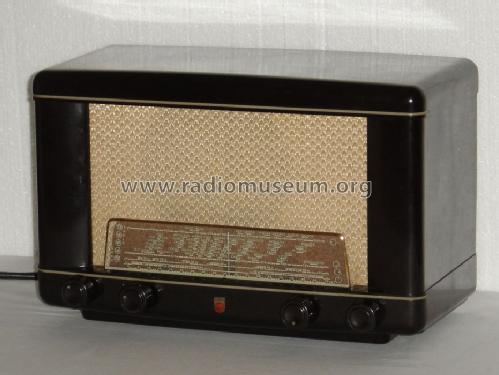

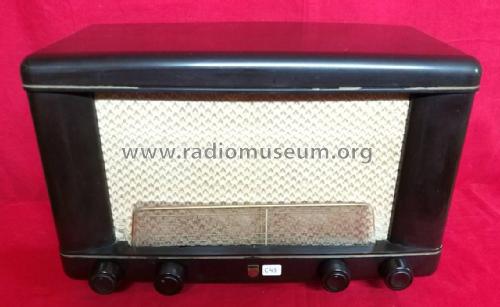

Material Moulded (Bakelite or Plastics)
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 400 x 255 x 210 mm / 15.7 x 10 x 8.3 inch
Notes

Frequenzen KW siehe Schaltplan-Zusatz.


AM radio for external antena:
  • LW: 150 - 419,6 kHz.
  • BC: 517 - 1622 kHz.
  • SW1: 9,5 - 12 MHz (band spread).
  • SW2: 5,94 - 18,2 MHz.

Loudspeaker: 9738X (5Ω).

Dial lamps: 2x 8045D (E10, 6,3V/320mA).



Net weight (2.2 lb = 1 kg) 5.6 kg / 12 lb 5.4 oz (12.335 lb)
Price in first year of sale 208.00 Hfl
Collectors' prices
External source of data E. Erb 3-907007-36-0
Source of data Technisch- Commercieel - Radio Vademecum Staleman

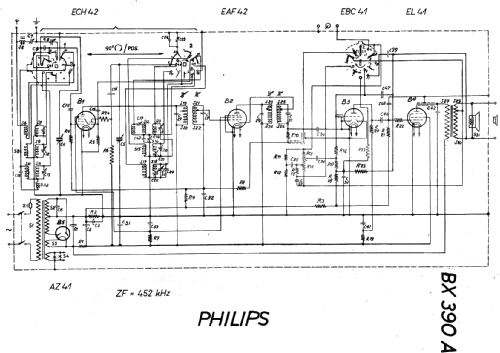

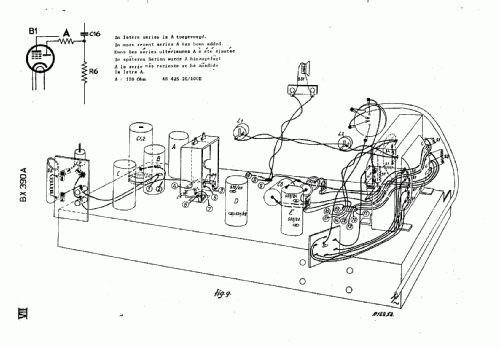

Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Literature/Schematics (1) -- Original-techn. papers.
