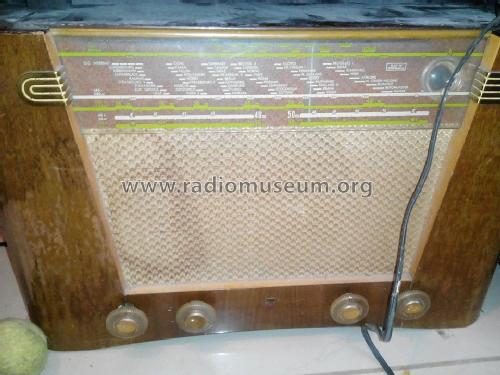

BX500A /00 /10 /12
Philips; Eindhoven (tubes international!); Miniwatt
- Country
- Netherlands
- Manufacturer / Brand
- Philips; Eindhoven (tubes international!); Miniwatt
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 29896
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and more than two Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BX500A /00 /10 /12 - Philips; Eindhoven tubes
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 516 x 330 x 235 mm / 20.3 x 13 x 9.3 inch
- Notes
-
4 gespreizte KW-Bänder: 25m, 30m, 40m, 50m + LW, MW, KW 13m - 40m.
AM radio for external antenna:- LW: 150 - 395 kHz.
- BC: 518 - 1620 kHz.
- SW1: 7 - 21,9 MHz.
- SW2: 5,9 - 7,4 MHz (bandspread 40m, 50m).
- SW3: 9,35 - 12 MHz (bandspread 25m, 30m).
Loudspeaker: 9696-05 (5Ω, with soundwave diffuser).Dial lamp: 2x 8045D (E10, 6.3V/320mA).The difference between versions /00, /10 and /12 is the cabinet.See also model BX500A from Philips Leuven (Belgium)
- Net weight (2.2 lb = 1 kg)
- 8.3 kg / 18 lb 4.5 oz (18.282 lb)
- Price in first year of sale
- 295.00 Hfl
- Source of data
- Technisch- Commercieel - Radio Vademecum Staleman
- Literature/Schematics (1)
- -- Original-techn. papers.
This is the original documentation from Philips in Dutch. | 865 KB |
- Documents regarding this model
- Author
- Model page created by Iven Müller. See "Data change" for further contributors.
