Capella BD700A-22 ab WN 4001

Capella BD700A-22; Philips Radios - (ID = 1242409) Radio

Capella BD700A-22; Philips Radios - (ID = 1242412) Radio

Capella BD700A-22; Philips Radios - (ID = 104045) Radio

Capella BD700A-22; Philips Radios - (ID = 104046) Radio

Capella BD700A-22; Philips Radios - (ID = 104048) Radio

Capella BD700A-22; Philips Radios - (ID = 104050) Radio

Capella BD700A-22; Philips Radios - (ID = 104051) Radio

Capella BD700A-22; Philips Radios - (ID = 5317) Radio
Capella BD700A-22; Philips Radios - (ID = 2958) Radio Capella BD700A-22; Philips Radios - (ID = 2442529) Radio
Capella BD700A-22; Philips Radios - (ID = 450792) Radio
Use red slider bar for more.
Capella BD700A-22; Philips Radios - (ID = 2958) Radio
Philips Radios -: Capella BD700A-22 [Radio] ID = 2958 820x556
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capella BD700A-22 ab WN 4001, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1950/1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 15: ECH42 EAF42 EF42 EF42 EM34 EF42 EF42 EB41 EB41 EF40 EAF42 EL41 EL41 AZ41 AZ41
Main principle Super-Heterodyne (Super in general); ZF/IF 452/10700 kHz; 3 AF stage(s)
Tuned circuits 6 AM circuit(s)     9 FM circuit(s)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 27 cm = 10.6 inch
Power out 10 W (unknown quality)
from Radiomuseum.org Model: Capella BD700A-22 [ab WN 4001] - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 610 x 393 x 255 mm / 24 x 15.5 x 10 inch
Notes Philips Capella BD700A-22. Siehe auch BI700A und BX700A.
FM-Demodulator: Diskriminator mit Begrenzer-Diode.
Net weight (2.2 lb = 1 kg) 15 kg / 33 lb 0.6 oz (33.04 lb)
Price in first year of sale 698.00 DM
Collectors' prices
Source of data Kat.d. Rundf.Gr.Handel 1950/51 / Radiokatalog Band 1, Ernst Erb

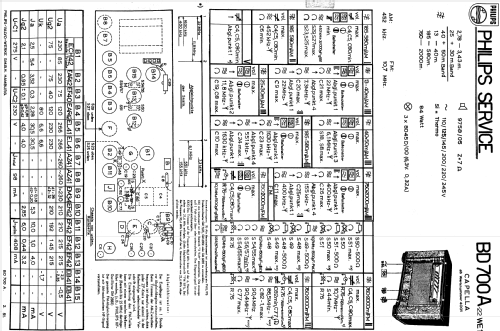

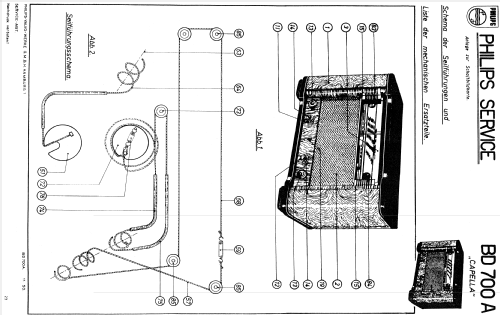

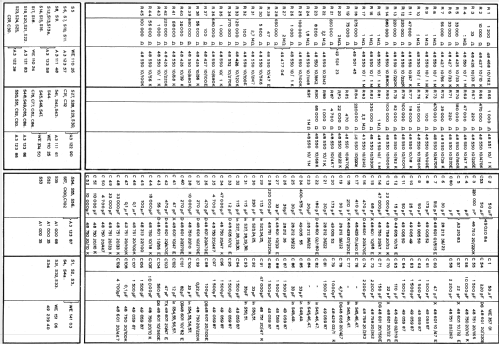

Circuit diagram reference Lange-Nowisch
Mentioned in Funkschau (5016)

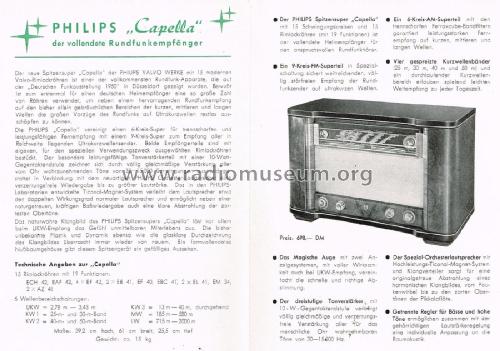

Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
