Capella-Tonmeister 842 B8D42AS/05

Capella-Tonmeister 842 B8D42AS/05; Philips Radios - (ID = 946766) Radio Capella-Tonmeister 842 B8D42AS/05; Philips Radios - (ID = 946767) Radio
Capella-Tonmeister 842 B8D42AS/05; Philips Radios - (ID = 946768) Radio Capella-Tonmeister 842 B8D42AS/05; Philips Radios - (ID = 946769) Radio

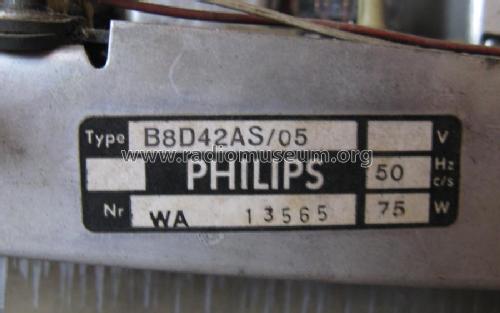

Capella-Tonmeister 842 B8D42AS/05; Philips Radios - (ID = 946770) Radio Capella-Tonmeister 842 B8D42AS/05; Philips Radios - (ID = 1786636) Radio
Use red slider bar for more.
Capella-Tonmeister 842 B8D42AS/05; Philips Radios - (ID = 946766) Radio
Philips Radios -: Capella-Tonmeister 842 B8D42AS/05 [Radio] ID = 946766 899x423
Select picture or schematic to display from thumbnails on the right and click for download.
For model Capella-Tonmeister 842 B8D42AS/05, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1965 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: ECC85 ECH81 EF184 EAF801 EM87 EM87 ECC808 ECC808 ECC83 ELL80 ELL80
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)     12 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 125; 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 18 W (unknown quality)
from Radiomuseum.org Model: Capella-Tonmeister 842 B8D42AS/05 - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 650 x 280 x 200 mm / 25.6 x 11 x 7.9 inch
Notes Stereo-Decoder eingebaut; Hall (Reverbeo);
Stereo-NF-Verstärker mit 2 Gegentakt-Endstufen je 9 W.
Siehe auch Philips Capella Tonmeister 842 B8D42AS.

Model page created by Karl-Heinz Schmehr. See "Data change" for further contributors.
